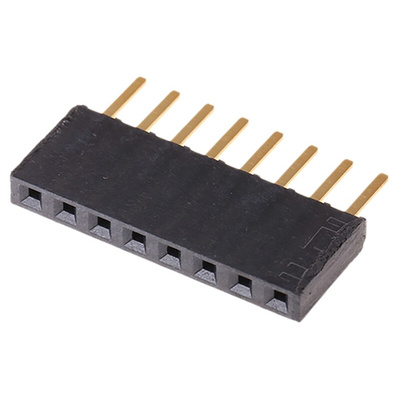

SSW-108-02-G-S, Samtec SSW Series Straight Through Hole Mount PCB Socket, 8-Contact, 1-Row, 2.54mm Pitch, Solder Termination

Through Hole 2.54mm Square Post Socket Strips with Solder Tail - SSW Series

SSW series PCB through hole board-to-board square post, solder tailed socket strips with a 2.54mm pitch and a black, liquid crystal polymer insulator. The Tiger Buy contacts of these 2.54mm PCB through hole sockets are made from phosphor bronze with 0.51μm gold plating on the contact and gold flash on the tail (apart from stock numbers 765-5739 and 765-5786 which have matte tin contacts). These PCB board to board 2.54mm through hole square post socket strips are available in a variety of configurations including single and double row, straight and right angle and an option of post lengths. The operating temperature range for these SSW series PCB through hole sockets is -55 to 125°C for gold plated versions and -55 to 105°C for matte tin versions.
SSW PCB sockets with part number TSW-xxx-01-x-x have a tail length of 2.64mm.
SSW PCB sockets with part number TSW-xxx-02-x-x have a tail length of 4.93mm.

Note

These SSW series PCB through hole board-to-board square post sockets mate with the following:
TSW series through hole 2.54mm square post headers - see stock number 767-0849 typically.
TSM series SMT 2.54mm square post headers - see stock number 765-6458 typically.

Samtec PCB Socket, 2.54mm Pitch, 550V AC Voltage Rating - SSW Series - SSW-108-02-G-S

Keen to connect your board-mounted setups? Bring them together with this Samtec PCB socket. By plugging into a header (161-2465), it lets you quickly stack boards while skipping the trouble of handling cables. As it supports data transfer rates up to 8Gbps, the unit speeds through heavy-duty tasks. Using the connector with standard components is a piece of cake, thanks to its standard pitch of 2.54mm. Don't worry about faulty connections, as the socket's gold-plated bronze pins are highly conductive and corrosion-resistant to keep signals flowing.

Features & Benefits

• Through-hole mounting for secure installation
• Current rating of 5.7A for use in medium-duty systems
• Straight orientation for easy mating
• Lifespan of 100 connection cycles for long-lasting performance
• Safe for use in harsh environments, thanks to a wide operating temperature range between -55°C and +125°C

Applications

• Data centres
• Beverage production
• Packaging industry

Is this socket halogen-free?

Yes, this socket is designed without materials containing halogen, so it doesn't emit toxic fumes in the event of a fire. This makes it a safe choice for your work environment.
