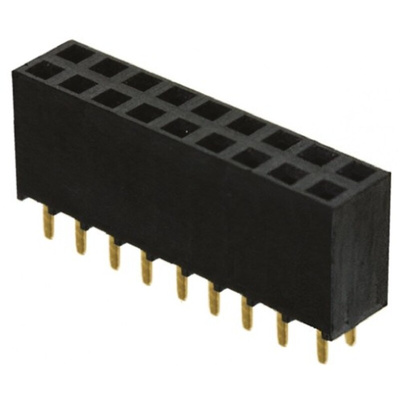

SSW-109-01-G-D, Samtec SSW Series Straight Through Hole Mount PCB Socket, 18-Contact, 2-Row, 2.54mm Pitch, Solder Termination

Through Hole 2.54mm Square Post Socket Strips with Solder Tail - SSW Series

SSW series PCB through hole board-to-board square post, solder tailed socket strips with a 2.54mm pitch and a black, liquid crystal polymer insulator. The Tiger Buy contacts of these 2.54mm PCB through hole sockets are made from phosphor bronze with 0.51μm gold plating on the contact and gold flash on the tail (apart from stock numbers 765-5739 and 765-5786 which have matte tin contacts). These PCB board to board 2.54mm through hole square post socket strips are available in a variety of configurations including single and double row, straight and right angle and an option of post lengths. The operating temperature range for these SSW series PCB through hole sockets is -55 to 125°C for gold plated versions and -55 to 105°C for matte tin versions.
SSW PCB sockets with part number TSW-xxx-01-x-x have a tail length of 2.64mm.
SSW PCB sockets with part number TSW-xxx-02-x-x have a tail length of 4.93mm.

Note

These SSW series PCB through hole board-to-board square post sockets mate with the following:
TSW series through hole 2.54mm square post headers - see stock number 767-0849 typically.
TSM series SMT 2.54mm square post headers - see stock number 765-6458 typically.

Samtec PCB Socket, 5.7A Current Rating Per Pin, Low Insertion Force Contacts - SSW Series - SSW-109-01-G-D

Looking for a quick and easy way to connect your circuit boards? Get stacking with this PCB socket from Samtec. Its solder tails offer straightforward and secure connections to your board, so you can rest assured of the unit's durability in demanding industrial environments. For snappy mating with a compatible header, its 18 Tiger Buy contacts feature a low average insertion force of 0.83N while ensuring a high retention hold. Insulation is handled by a liquid crystal polymer body that effectively protects against electric shocks.

Features & Benefits

• Suitable for use in new designs or retrofit applications for versatility
• Straight body orientation for uncomplicated board stacking
• Phosphor bronze contacts ensure optimal electrical flow
• Compatible with extreme locations, thanks to an extended operating temperature range between -55°C and +125°C

Applications

• IT hubs
• Security centres
• Medical and pharmaceutical production
• Automotive assembly lines

Does this PCB socket support high-speed data transfer?

Yes, you can count on this connector to run high-speed signals across your communication network courtesy of a data transfer rate of up to 8Gbps.
