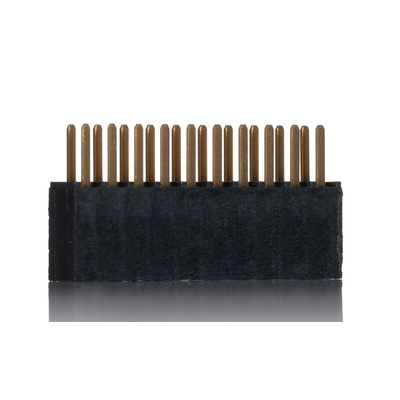

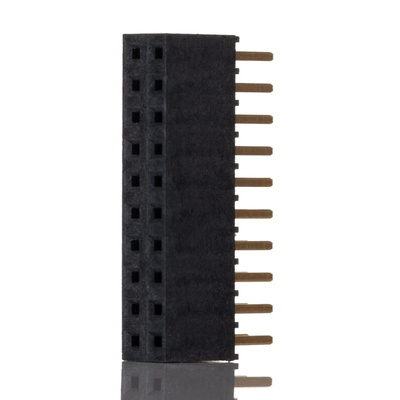

SSW-110-02-G-D, Samtec SSW Series Straight Through Hole Mount PCB Socket, 20-Contact, 2-Row, 2.54mm Pitch, Solder Termination

Samtec PCB Socket, 10mΩ Contact Resistance, 20 Contacts - SSW Series - SSW-110-02-G-D

Need cable-free transmission on your circuit boards? Trust this PCB socket from Samtec to get the job done. Its 20-contact design gives you multi-function control over your network. The unit's liquid crystal polymer housing hands you a two-for-one advantage, as it provides insulation and protection from impact for use in harsh environments. A current rating of 5.7A means this unit is the right choice for light-duty applications. Solder termination forges a secure link to your circuit board, which comes in handy in vibrating systems.

Features & Benefits

• Phosphor bronze contacts are highly conductive for a reliable electrical connection
• Voltage rating of 550V makes it suitable for use in medium-voltage applications
• Withstands up to 100 mating cycles, ensuring long-term performance
• Straight body orientation for space-efficient mounting on your PCB
• Pitch of 2.54mm provides safe spacing between pins to prevent short circuits

Applications

• Security and surveillance systems
• Research laboratories
• Transportation industry

What's the temperature tolerance of this socket?

This unit has a wide operating temperature range between -55°C and +125°C, making it safe for use in demanding conditions.
