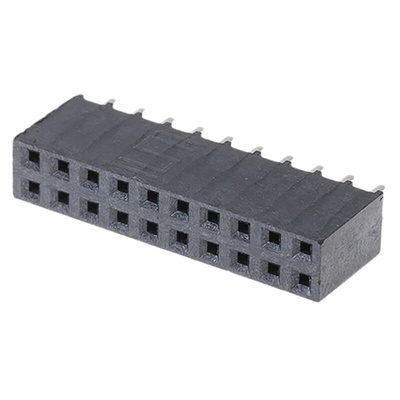

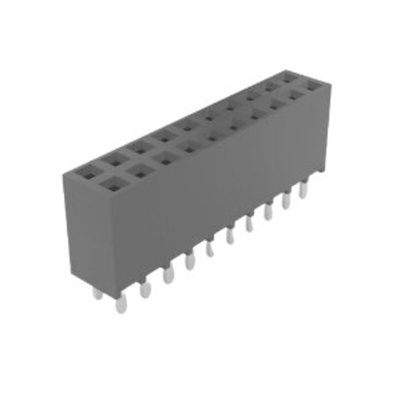

SSW-110-01-T-D, Samtec SSW Series Straight Through Hole Mount PCB Socket, 20-Contact, 2-Row, 2.54mm Pitch, Solder Termination

Samtec PCB Socket, 10mΩ Contact Resistance, 0.83N Insertion Force - SSW Series - SSW-110-01-T-D

Looking for a messenger to carry signals from wires to your circuit board? Go for this PCB socket from Samtec. It features 20 conductive phosphor bronze contacts split across two rows to ensure a reliable connection. Matte tin plating shields the pins from corrosion, assuring you of long-term performance. There's a 2.54mm pitch between the contacts to prevent short circuits, promoting electrical safety. For additional protection, polymer insulation is on hand to limit contact with live parts, reducing the risk of electric shock.

Features & Benefits

• Current rating of 5.7A per pin indicates it's suitable for light-duty applications
• Withstands ambient temperatures between -55°C and +105°C, making it safe to use in demanding conditions
• Through-hole termination ensures a secure, vibration-proof link with your board
• Low insertion force of 0.83N makes it simple to install with minimal effort

Applications

• Security and surveillance systems
• Robotics and automation
• Computing and data storage

What headers does this socket mate with?

This versatile unit mates with many headers, including those in Samtec's TSW (180-3464) and TSS (180-3663) series.

2.54mm Board to Board and Wire to Board - Samtec

Through Hole 2.54mm Square Post Sockets with Solder Tail - SSW Series - Double Row Footprint

SSW / SSQ Series Datasheet
