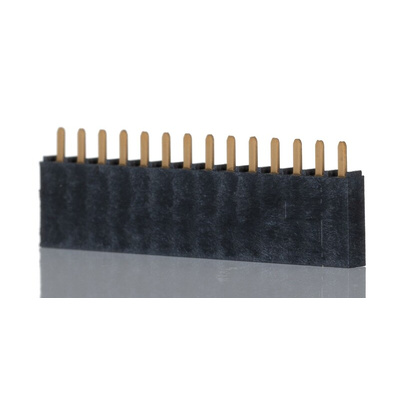

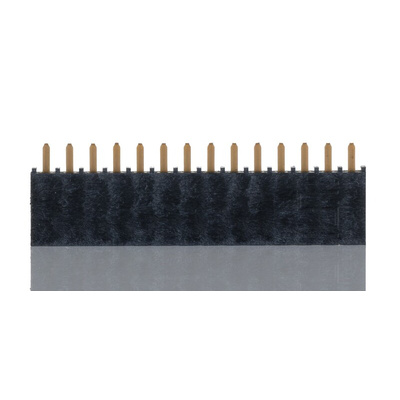

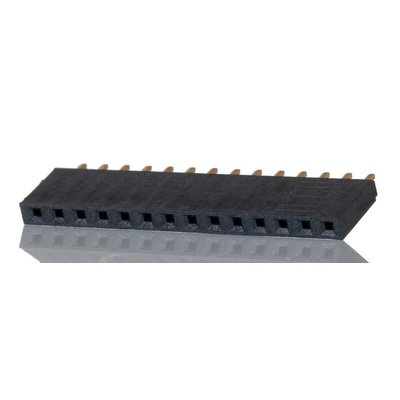

SSW-114-01-G-S, Samtec SSW Series Straight Through Hole Mount PCB Socket, 14-Contact, 1-Row, 2.54mm Pitch, Solder Termination

Through Hole 2.54mm Square Post Socket Strips with Solder Tail - SSW Series

SSW series PCB through hole board-to-board square post, solder tailed socket strips with a 2.54mm pitch and a black, liquid crystal polymer insulator. The Tiger Buy contacts of these 2.54mm PCB through hole sockets are made from phosphor bronze with 0.51μm gold plating on the contact and gold flash on the tail (apart from stock numbers 765-5739 and 765-5786 which have matte tin contacts). These PCB board to board 2.54mm through hole square post socket strips are available in a variety of configurations including single and double row, straight and right angle and an option of post lengths. The operating temperature range for these SSW series PCB through hole sockets is -55 to 125°C for gold plated versions and -55 to 105°C for matte tin versions.
SSW PCB sockets with part number TSW-xxx-01-x-x have a tail length of 2.64mm.
SSW PCB sockets with part number TSW-xxx-02-x-x have a tail length of 4.93mm.

Note

These SSW series PCB through hole board-to-board square post sockets mate with the following:
TSW series through hole 2.54mm square post headers - see stock number 767-0849 typically.
TSM series SMT 2.54mm square post headers - see stock number 765-6458 typically.

Samtec PCB Socket, For Board-to-Board Connections, 550V AC Voltage Rating - SSW Series - SSW-114-01-G-S

Stacking your system's circuit boards together is cinch using this PCB socket from Samtec. It slots directly into a header (180-2010), providing handy plug-in connectivity between boards without the need to organise cables. As it uses gold-plated bronze contacts, the component is highly conductive and resistant to corrosion to keep signal transmission strong. It has 14 contacts, so you can make multiple connections at once for versatility. As it supports data transfer rates up to 8Gbps, the socket is a sure fit for busy communication tasks.

Features & Benefits

• Through-hole mounting ensures a secure connection to your PCB
• Standard pitch of 2.54mm for compatibility with common connectors
• Halogen-free design means it doesn't emit toxic fumes for safety in the event of a fire
• Works reliably in harsh conditions, thanks to a wide operating temperature range between -55°C and +125°C

Applications

• Automotive manufacturing
• Process control
• Telecommunications

Why should I stack my system's circuit boards?

By stacking your PCBs, you cut back on electrical noise between components. This ensures that signals travel through your system safely for reliable processing.
