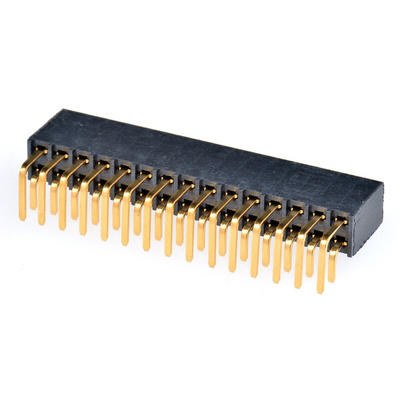

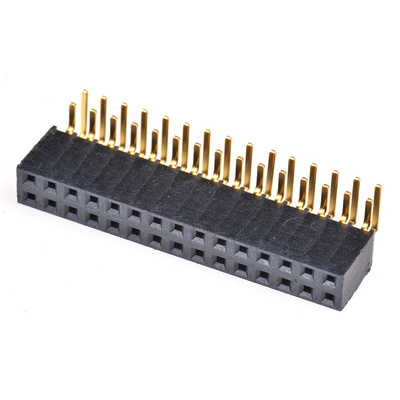

SSW-115-02-G-D-RA, Samtec SSW Series Right Angle Through Hole Mount PCB Socket, 30-Contact, 2-Row, 2.54mm Pitch, Solder Termination

Through Hole 2.54mm Square Post Socket Strips with Solder Tail - SSW Series

SSW series PCB through hole board-to-board square post, solder tailed socket strips with a 2.54mm pitch and a black, liquid crystal polymer insulator. The Tiger Buy contacts of these 2.54mm PCB through hole sockets are made from phosphor bronze with 0.51μm gold plating on the contact and gold flash on the tail (apart from stock numbers 765-5739 and 765-5786 which have matte tin contacts). These PCB board to board 2.54mm through hole square post socket strips are available in a variety of configurations including single and double row, straight and right angle and an option of post lengths. The operating temperature range for these SSW series PCB through hole sockets is -55 to 125°C for gold plated versions and -55 to 105°C for matte tin versions.
SSW PCB sockets with part number TSW-xxx-01-x-x have a tail length of 2.64mm.
SSW PCB sockets with part number TSW-xxx-02-x-x have a tail length of 4.93mm.

Note

These SSW series PCB through hole board-to-board square post sockets mate with the following:
TSW series through hole 2.54mm square post headers - see stock number 767-0849 typically.
TSM series SMT 2.54mm square post headers - see stock number 765-6458 typically.

Samtec SSW Series PCB Socket, Bronze Contact, 6.9A - SSW-115-02-G-D-RA

This versatile PCB socket is a durable and efficient solution for various applications in automation, electronics, electrical, and mechanical industries. With its right angle orientation and through hole mounting type, this socket provides a secure connection for your circuit boards. The bronze contact material ensures high conductivity and reliability, while the 30 pins and 2 rows offer ample connectivity options. With a voltage rating of 550V and a current rating of 6.9A, this socket is capable of handling high power applications with ease.

Features & Benefits

• Right angle orientation for easy PCB connections
• Through hole mounting type for secure installation
• Bronze contacts material for high conductivity
• 30 pins and 2 rows for versatile connectivity options
• Voltage rating of 550V for high power applications
• Current rating of 6.9A for reliable performance
• Solder termination method for easy assembly

Applications

• Ideal for board-to-board connectors
• Suitable for high-current applications
• Perfect for use in automation systems
• Great for electronics and electrical equipment

Can it handle high-power applications?

Yes, the Socket has a voltage rating of 550V and a current rating of 6.9A, making it ideal for high-power applications.

Will it provide a reliable connection for my circuit boards?

Yes, the socket features bronze contact material for high conductivity, ensuring a secure and reliable connection for your circuit boards.

Can I use this socket for board-to-board connectors?

Yes, the socket is perfect for board-to-board connections, thanks to its 30 pins and 2 rows layout.

Is this socket easy to install?

Yes, the socket features a through-hole mounting type and solder termination method, making installation quick and hassle-free.
