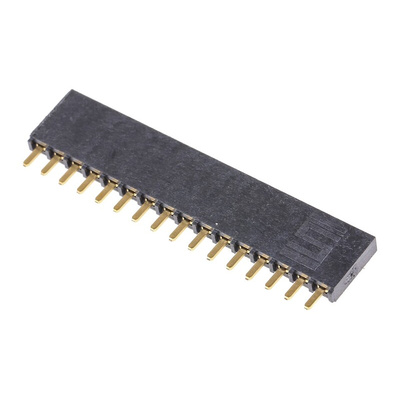

SSW-116-01-G-S, Samtec SSW Series Straight Through Hole Mount PCB Socket, 16-Contact, 1-Row, 2.54mm Pitch, Solder Termination

Samtec PCB Socket, 0.72N Insertion Force, 550V AC Voltage Rating - SSW Series - SSW-116-01-G-S

When you want a signal transmission medium to link your circuit boards, this Samtec PCB socket is the one for the job. It plugs directly onto headers on your appliance, eliminating the need for wires and leaving you with a tidy setup. The unit features phosphor bronze contacts that offer high conductivity, giving you a connection you can count on. Thanks to the liquid crystal polymer housing, this socket holds its own against wear and abrasion, making it fit for use in harsh settings.

Features & Benefits

• Through-hole mounting ensures a secure, vibration-proof connection to your system
• 16 contacts let you make multiple connections
• Voltage rating of 550V AC makes it suitable for medium-voltage applications
• Broad operating temperature range between -55°C and +125°C for safe use in challenging settings

Applications

• Electrical workshops
• Industrial lighting
• Renewable energy industry

How much space is there between the contacts?

This PCB socket has a pitch of 2.54mm. This ensures electrical safety, as it prevents the contacts from touching each other and causing short circuits.
