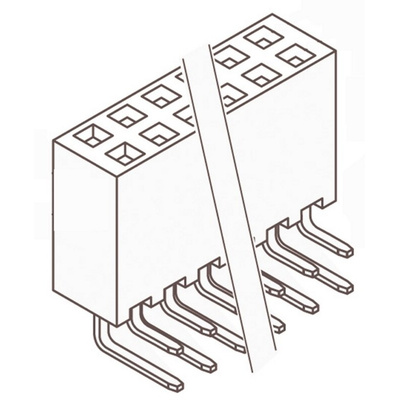

SSW-130-02-G-D-RA, Samtec SSW Series Right Angle Through Hole Mount PCB Socket, 60-Contact, 2-Row, 2.54mm Pitch, Solder Termination

Through Hole 2.54mm Square Post Socket Strips with Solder Tail - SSW Series

SSW series PCB through hole board-to-board square post, solder tailed socket strips with a 2.54mm pitch and a black, liquid crystal polymer insulator. The Tiger Buy contacts of these 2.54mm PCB through hole sockets are made from phosphor bronze with 0.51μm gold plating on the contact and gold flash on the tail (apart from stock numbers 765-5739 and 765-5786 which have matte tin contacts). These PCB board to board 2.54mm through hole square post socket strips are available in a variety of configurations including single and double row, straight and right angle and an option of post lengths. The operating temperature range for these SSW series PCB through hole sockets is -55 to 125°C for gold plated versions and -55 to 105°C for matte tin versions.
SSW PCB sockets with part number TSW-xxx-01-x-x have a tail length of 2.64mm.
SSW PCB sockets with part number TSW-xxx-02-x-x have a tail length of 4.93mm.

Note

These SSW series PCB through hole board-to-board square post sockets mate with the following:
TSW series through hole 2.54mm square post headers - see stock number 767-0849 typically.
TSM series SMT 2.54mm square post headers - see stock number 765-6458 typically.

Samtec SSW Right Angle Through Hole Mount PCB Socket, 60-Contact, 2.54mm Pitch - SSW-130-02-G-D-RA

This low cost socket strip manufactured by Samtec. These printed circuit board socket strips, operating on a .100" pitch, have been a staple in the electronics industry for decades. Samtec has modernised them with the high retention, cost-effective Tiger Buy™ contact. Available in both surface mount and through-hole configurations, these versatile sockets are ideal for new designs and retrofit applications

Features & Benefits

• Incorporates a high retention Tiger Buy™ contact ensuring secure and reliable connections, even in demanding environments
• Available in both surface mount and through-hole configurations providing flexibility for various design requirements

Applications

• Ideal for connecting PCBs within electronic devices
• Suitable for both new product development and upgrading existing systems

What is the pitch of the SSW-130-02-G-D-RA socket strip?

The pitch is .100" (2.54 mm).

Can I use this socket strip for surface mount applications?

Yes, it is available in surface mount configuration.

Does the Tiger Buy™ contact provide reliable connections?

Yes, the high retention Tiger Buy™ contact ensures secure connections.

Is this suitable for retrofitting existing systems?

Yes, the SSW-130-02-G-D-RA is versatile and can be used for both new designs and retrofits.
