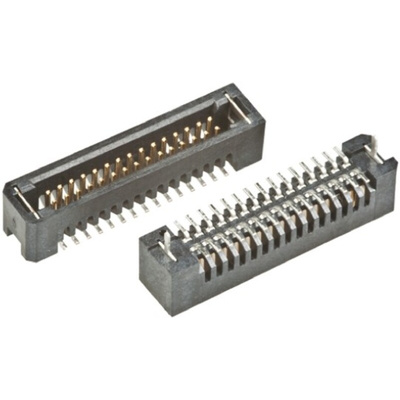

TFM-130-02-S-D-WT, Samtec TFM Series Straight Surface Mount PCB Header, 60 Contact(s), 1.27mm Pitch, 2 Row(s), Shrouded

Surface Mount Headers - TFM Series

These TFM Series Board to Board Headers from Samtec are SMT Terminal Strips with a 1.27 mm pitch.

Current rating 2A
Operating temperature -55 to 125°C
TFM-xxx-02-x-x are 5.72mm in body height
TFM-xxx-32-x-x are 11.18mm in body height
TFM-xxx-xx-S-x-x have 0.76 μm gold plated contacts and 0.076 μm gold plated tails
TFM-xxx-xx-L-x-x have 0.38 μm gold plated contacts and tin plated tails
TFM-xxx-xx-x-A have Alignment Pins
TFM-xxx-xx-x-WT have Weld Tabs

Note

For mating Board to Board Sockets see SFM Series, stock number 507-7308 typical
For mating IDC cable assemblies see SFSD Series, stock number 767-9221 typical

TFM Series Micro Terminal Strip Footprint Drawing

TFM Series Micro Terminal Strip Customer Drawing
