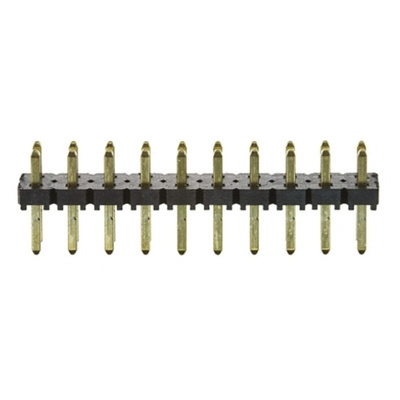

TLW-110-05-G-D, Samtec TLW Series Straight Through Hole Pin Header, 20 Contact(s), 2.54mm Pitch, 2 Row(s), Unshrouded

Low Profile 2.54mm Square Post Header Terminals - TLW Series

TLW series single and double row PCB through hole low profile board-to-board square post header terminals with a 2.54mm pitch, a 4.32mm tail length, a 2.67mm terminal length and a black liquid crystal polymer insulator. The contacts of these TLW series low profile square post header terminals are made from phosphor bronze with 0.25μm gold plating on the contacts and gold flash on the tail. The operating temperature range for these TLW series board to board 2.54mm low profile square post headers is -55 to 125°C.

Note

These TLW series PCB through hole board-to-board 2.54mm square post header terminals mate with the following:
CES low profile socket strips - see stock number 766-6616 typically.
SLW low profile socket strips - see stock number 767-9414 typically.

2.54mm Board to Board and Wire to Board - Samtec

Low Profile 2.54mm Square Post Headers - TLW Series - Footprint

Low Profile 2.54mm Square Post Headers - TLW Series - Customer Drawing 1

Low Profile 2.54mm Square Post Headers - TLW Series - Customer Drawing 2

Low Profile 2.54mm Square Post Headers - TLW Series - Customer Drawing 3

Low Profile 2.54mm Square Post Headers - TLW Series
