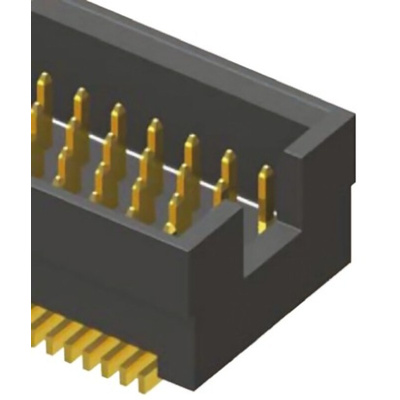

TOLC-110-02-S-Q, Samtec TOLC Series Straight Surface Mount PCB Header, 40 Contact(s), 1.27mm Pitch, 4 Row(s), Shrouded

Quad Row SMT Terminal - TOLC Series

The TOLC Series of FourRay SMT high density terminal strips from samtec are a staggered quad row design. Contact and row pitch is 1.27 mm with a 0.635 mm offset in the contacts from row to row. This range of TOLC Series high density terminal strips have 0.75 μm Gold plating on the contacts and 0.075 μm Gold plating on the tails. The above board height of these TOLC Series high density terminal strips is 5.59 mm, with a mated height of 6.35 mm when using the corresponding SOLC high density socket strip.

Note

For mating SOLC high density socket strips see stock number 767-9521 typical.

TOLC Series High Density Terminal Strip Footprint Drawing

TOLC Series High Density Terminal Strip Catalogue Page

TOLC Series High Density Terminal Strip Customer Drawing
