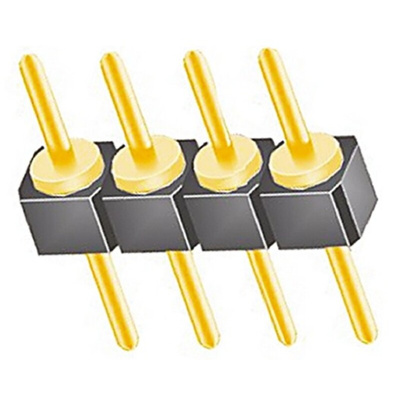

TS-104-G-A, Samtec TS Series Straight Through Hole Pin Header, 4 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded

7656388
Номер производителя: TS-104-G-AПроизводитель: Samtec
Цена за шт.
503.10 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Precision Screw Machined 2.54mm Header Terminal Strips - TS Series

TS series board to board through hole single row precision screw machined terminal header strips with a 2.54mm pitch and a 3.96mm tail length. The body of these TS series board-to-board PCB precision machined header terminal strips is made from black glass filled polyester and the contacts are made from phosphor bronze with a 0.51μm gold plating. The temperature range at which these TS series machined terminal strips can be used is -55 to +125°C.

Note

These TS series PCB board-to-board screw machined header strips mate with the following:
SS series socket strips - see stock number 767-9707 typically.
SL series socket strips - see stock number 767-9319 typically.

Samtec Pin Header, Polyester Insulation Material, Phosphor Bronze Terminal Material - TS Series - TS-104-G-A

Need a trusty messenger to carry signals between your circuit board and peripheral components? Count on this pin header from Samtec. It has a four-contact configuration that allows you to make multiple transmissions at the same time, reducing your setup's wiring needs. A 2.54mm pitch provides enough spacing to ensure the pins don't touch, minimising the risk of short circuits. For extra electrical safety, the piece of kit has robust polyester insulation that keeps shocks at bay. Thanks to through-hole mounting, you get a firm connection to the circuit board that braves vibration without a hitch.

Features & Benefits

• Current rating of 1A makes it the right fit for low-current applications
• Wide operating temperature range between -55°C and +125°C means it's a safe choice for use in demanding conditions
• Gold contact plating reduces the risk of corrosion to ensure long-lasting service

Applications

• Process and packaging equipment
• Oil and gas plants
• Industrial communication systems

What are the dimensions of this pin header?

This unit has compact dimensions of 2.54 (L) x 10.16mm (W), making it a space-efficient solution for tight setups.

2.54mm Board to Board and Wire to Board - Samtec

Техническая спецификация
pdfPrecision Screw Machined 2.54mm Terminal Strips - TS Series - Customer Drawing 3
pdfPrecision Screw Machined 2.54mm Terminal Strips - TS Series - Customer Drawing 1
pdfPrecision Screw Machined 2.54mm Terminal Strips - TS Series
pdfPrecision Screw Machined 2.54mm Terminal Strips - TS Series - Customer Drawing 4
pdfPrecision Screw Machined 2.54mm Terminal Strips - TS Series - Customer Drawing 2
pdf2546110_Catalogue
Длин хвостового штыря:
3.96мм
Длина соединительного штыря:
4.22мм
Защищенный/Незащищенный:
Unshrouded
Кол-во контактов:
4
Количество рядов:
1
Концевая заделка:
Припой
Материал контактов:
Фосфорная бронза
Номинал тока:
1.0A
Ориентация корпуса:
Прямой
Покрытие контактов:
Золото
Род:
Male
Серия:
TS
Система соединителя:
Board to Board
Тип монтажа:
Сквозное отверстие
Шаг:
2.54мм
