TS-110-G-A, Samtec TS Series Straight Through Hole Pin Header, 10 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded

Precision Screw Machined 2.54mm Header Terminal Strips - TS Series

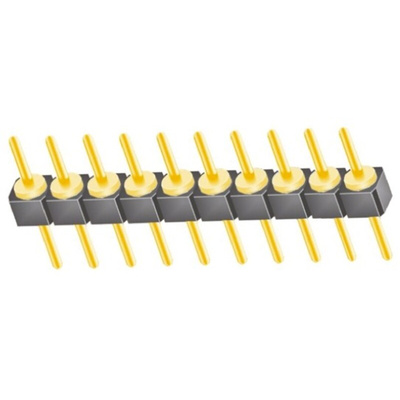

TS series board to board through hole single row precision screw machined terminal header strips with a 2.54mm pitch and a 3.96mm tail length. The body of these TS series board-to-board PCB precision machined header terminal strips is made from black glass filled polyester and the contacts are made from phosphor bronze with a 0.51μm gold plating. The temperature range at which these TS series machined terminal strips can be used is -55 to +125°C.

Note

These TS series PCB board-to-board screw machined header strips mate with the following:
SS series socket strips - see stock number 767-9707 typically.
SL series socket strips - see stock number 767-9319 typically.
