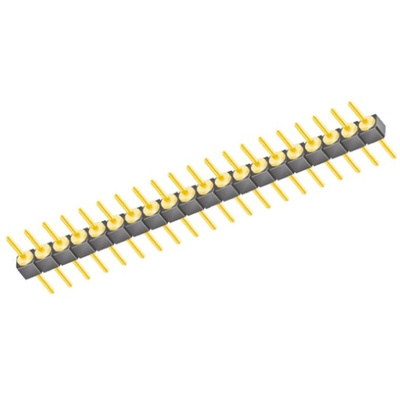

TS-120-G-A, Samtec TS Series Straight Through Hole Pin Header, 20 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded

7656417
Номер производителя: TS-120-G-AПроизводитель: Samtec
Цена за шт.
1540.50 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Precision Screw Machined 2.54mm Header Terminal Strips - TS Series

TS series board to board through hole single row precision screw machined terminal header strips with a 2.54mm pitch and a 3.96mm tail length. The body of these TS series board-to-board PCB precision machined header terminal strips is made from black glass filled polyester and the contacts are made from phosphor bronze with a 0.51μm gold plating. The temperature range at which these TS series machined terminal strips can be used is -55 to +125°C.

Note

These TS series PCB board-to-board screw machined header strips mate with the following:
SS series socket strips - see stock number 767-9707 typically.
SL series socket strips - see stock number 767-9319 typically.

Samtec Pin Header, 1A Current Rating, 3.96mm Tail Pin Length - TS Series - TS-120-G-A

Expand the connectivity of your PCB setup with this pin header from Samtec. It fits together with a socket strip (767-9366), providing quick plug-in mating to add extra devices to a system in no time. As the connector carries 20 conductors, it handles multiple circuits at once. With its phosphor bronze contacts, it smoothly sends power through its wires for efficient signalling. Securely installing the component is a doddle, thanks to its simple through-hole mounting method.

Features & Benefits

• Industry-standard pitch of 2.54mm so it mates easily with common connectors
• Tail pin length of 3.96mm for hassle-free soldering
• Single-row pin layout to slip into low-profile areas
• Broad operating temperature range between -55°C and +125°C for reliable performance in tough conditions

Applications

• Server management
• Control devices
• Metalworking
• Utility provision

Why should I use a pin header?

A pin header like this one closes many circuits in one go with easy plug-in mating, skipping the need to swap wires around for hassle-free connectivity.

Can I use this connector in moist conditions?

Yes, this header has gold-plated pins, so it resists corrosion to keep power flowing in damp and humid settings.

2.54mm Board to Board and Wire to Board - Samtec

Техническая спецификация
pdfPrecision Screw Machined 2.54mm Terminal Strips - TS Series - Customer Drawing 3
pdfPrecision Screw Machined 2.54mm Terminal Strips - TS Series - Customer Drawing 1
pdfPrecision Screw Machined 2.54mm Terminal Strips - TS Series
pdfPrecision Screw Machined 2.54mm Terminal Strips - TS Series - Customer Drawing 4
pdfPrecision Screw Machined 2.54mm Terminal Strips - TS Series - Customer Drawing 2
Длин хвостового штыря:
3.96мм
Длина соединительного штыря:
4.22мм
Защищенный/Незащищенный:
Unshrouded
Кол-во контактов:
20
Количество рядов:
1
Концевая заделка:
Припой
Материал контактов:
Фосфорная бронза
Номинал тока:
1.0A
Ориентация корпуса:
Прямой
Покрытие контактов:
Золото
Серия:
TS
Система соединителя:
Board to Board
Тип монтажа:
Сквозное отверстие
Шаг:
2.54мм
