09451511121, HARTING RJ Industrial Series Female RJ45 Connector, Cable Mount, Cat5, Разъем

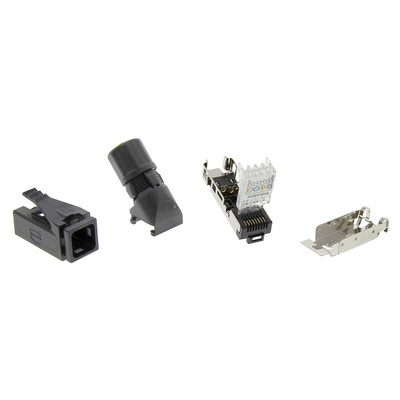

Harting RJ Industrial® Cat5 PROFINET RJ45 Connector Set

RJ Industrial® cat5 PROFINET RJ45 4 pole ethernet-data connector sets with a compact design which is field assembled using HARAX® for quick tool-less IDC termination. These RJ Industrial® cat5 plug connectors have a mating face to RJ45 IEC 60 603-74, a data transmission rate of 10/100 Mbit/s Ethernet, and are fully shielded with 360° contact. The housings of these RJ45 PROFINET connector plug sets are made from black UL 94-V0 polyamide and can be connected to cables which have a cross section of AWG 27 to AWG 22 (solid or stranded) and a 1.6 mm maximum conductor diameter. All models are highly reliable and excellent quality.

Features & Benefits

Stock number 765-9078 is a straight RJ45 4 pole connector which accepts a cable diameter of 4.5 mm to 9 mm.
Stock number 765-9072 is a 45° angled RJ45 4 pole connector with 4 cable outlet options which accepts a cable diameter of 4.5 mm to 8 mm.

Note

Cable not included.

Standards

Transmission performance: Category 5 / Class D up to 100 MHz acc. to ISO/IEC 11 801:2002, EN 50 173-1
Connector standard to acc. to IEC 60 603-7

RJ Industrial® Cat. 5 RJ45 PN Connector Set, 45° Angled - Customer Drawing
