09455511128, HARTING RJ Industrial Series Female RJ45 Connector, Through Hole, Cat5, Разъем

Harting RJ Industrial® Cat5 Modular RJ45 Jacks

Cat5 RJ Industrial modular RJ45 jacks with a compact design suitable for direct device integration. These Cat5 modular RJ45 jacks have a locking and mating face to RJ45 IEC 60 603-7, a data transmission rate of 1 Gbit Ethernet, 10/100 Mbit Ethernet and are suitable for PoE (IEEE 802.3af) and PoE+ (IEEE 802.3at). The shielding of these RJ45 modular sockets is brass plating nickel alloy with a UL-94-V0 black thermoplastic insert. The contacts are rated at 1.5A, 125 V ac and are made from phosphor bronze with a 15 μ" selective gold plating over nickel in the contact area and tin plating over nickel in the solder area. All models are highly reliable and excellent quality.

Features & Benefits

SMC compatible
Through hole mounting with a 90° body orientation
Up to 8 modular ports

Standards

Connector standard acc. to IEC 60 603-7

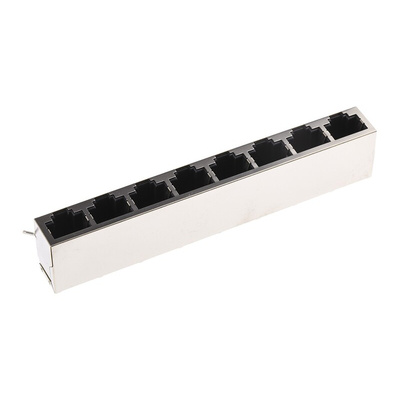

RJ Ind. RJ45 Jacks, 8 port 90 deg Angled

RJ Industrial® Cat. 5 RJ45 Modular Jack, 8 Port - Customer Drawing
