52063088, Greenlee TM-700UK Phone Line Tester, Тестовая трубка

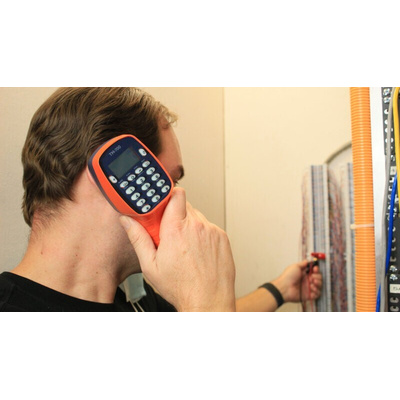

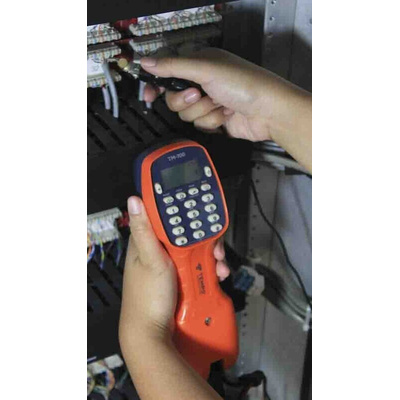

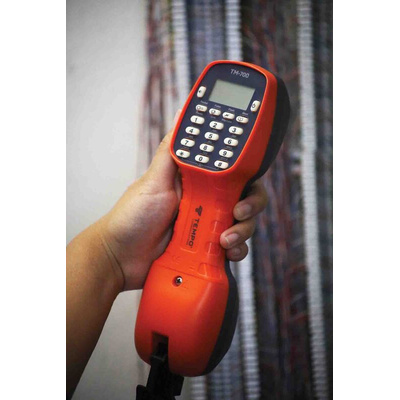

Greenlee Telephone Test Set

The Greenlee telephone test set with a BT plug is designed to help technicians install, service and maintain voice
service with ease. It has an LCD that is DSL compatible in both, Monitor and Talk modes, making reading polarity, voltage, current and ringing frequencies easier than ever. It clearly shows speed dials and recent numbers for faster access. This telephone test set features over-voltage and over-current detection for safer operation and also features an intercom mode, a built-in toner for pair tracing and DTMF detection and measurement for enhanced productivity. There is an option for operation using the built-in loudspeaker or with a headset (included) for easy hands-free operation.

Features and Benefits

LCD for easy dialling, programming, caller ID, voltage, current, ringing and DTMF measurements
Safe over-voltage and over-current protection
Intercom for dead-pair talking
Smart Intercom between Tele-Mate pros (including PE830) allows ringing the far end
Tone generator for pair identification
Luminescent (glow in the dark) keypad
DSL line filter
Super impedance amplifier to monitor lines without disrupting traffic
Tone and pulse dialling for old and new phone lines with
pause and flash (TBR)
User options allow USA or ETSI telephony with individual options available
RJ11 socket for easy cord changes
Ten last number redial and ten number speed dial memories
Headset (included) for hands-free operation, with loudspeaker option
Volume control and mute
Requires just two AA cells, readily available and affordable

Applications

Telecommunication
Service and maintenance
Network engineering
Research and development

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

TM-700, TM-700T, TM-700i and TM-700UK

TM-700 Instruction Manual
