P01120942, Chauvin Arnoux F402 Clamp Meter, Max Current 1000A ac CAT III 1500V

F401 TRMS Clamp Multimeter

The F401 clampmeter is designed for medium-power low-voltage applications in sectors such as LV electricity production and distribution, industry, railways
This clamp multimeter is also suitable for lift/elevator technicians and other lifting and transport specialists
The applications for the clamp multimeter are maintenance, testing, monitoring, diagnostics and connection
Equipped with a fast 12-bit TRMS digital acquisition system
Automatic AC/DC detection
AC and DC voltage up to 1000 V
Resistance and audible continuity
Min and Max analysis
TrueInrush current measurement
Temperature
IP54 protection

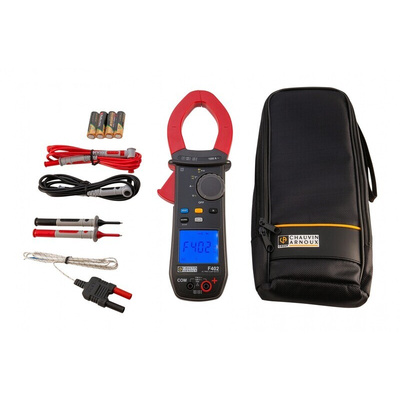

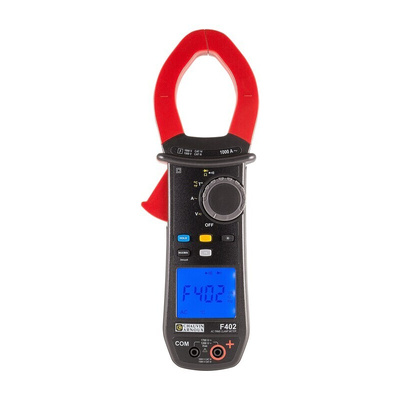

Clamp multimeter F402

To deal with the highest level of low-voltage electrical installations, the F400 Series has a high protection rating and is ideal for maintenance, testing, monitoring and diagnostics on medium-power installations.

Equipped with a fast 12-bit TRMS digital acquisition system, F402 clamps offer particularly accurate measurements whatever the signal's waveform.

Specifications :

• Clamping diameter: 48 mm
• Current: 1,000 A AC
• Voltage up to 1,200 VAC / 1,700 VDC
• Resistance and audible continuity
• Temperature
• Automatic AC/DC detection
• TrueInrush current measurement
• Hold, Min, MAX
• CAT IV 1,000 V / CAT III 1,500 V
• IP54 protection rating
