P01120966, Chauvin Arnoux F606 Clamp Meter, 3000A dc, Max Current 2000A ac CAT III 1500V

F605 AC/DC TRMS Clampmeter

The F605 clampmeter is designed for the high-power LV market in sectors such as elctrical power distribution, chemical and petrochemical industries, metallurgy, transport
The main applications are maintenance, testing, monitoring, diagnostics, sizing connection
Equipped with a fast 12-bit TRMS digital acquisition system
The large backlit triple display makes it easy to read in all circumstances
Automatic AC/DC detection
W/VA/var and PF power values
THD-f and THD-r
Resistance and audible continuity
Min, Max and Peak± analysis on all functions
Phase rotation
Relative and differential measurements
TrueInrush current measurements
IP54 protection

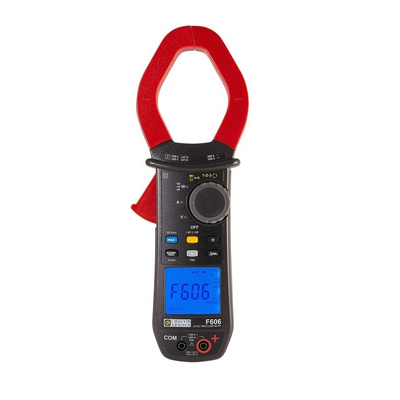

Clamp multimeter F606

2,000 A TRMS AC+DC multimeter clamp
With protection against electric shocks up to 12 kV, the F600 Series fulfils the most demanding safety criteria (CAT IV 1,000 V) and offers a high protection rating allowing users to work in total safety on all LV installations.
The F600 Series is ideal for high-power applications such as electrical power distribution, chemical and petrochemical industries, metallurgy, rail transport, etc.

Equipped with a fast 12-bit TRMS digital acquisition system, F606 clamps offer particularly accurate measurements whatever the signal's waveform.

Specifications:

• Clamping diameter: 60 mm
• Current: 2,000 A AC / 3,000 A DC
• Voltage up to 1,200 VAC / 1,700 VDC
• Resistance and audible continuity
• Power values (W, var, VA, PF) and harmonics (THDf, THDr)
• "2-wire method" phase rotation
• Automatic AC/DC detection
• TrueInrush current measurement
• Min, MAX, Peak+, Peak-
• RELative (ΔX) and differential (ΔX/X) measurements
• CAT IV 1,000 V / CAT III 1,500 V
• IP54 protection rating
