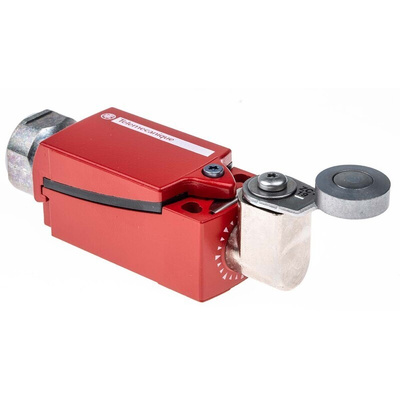

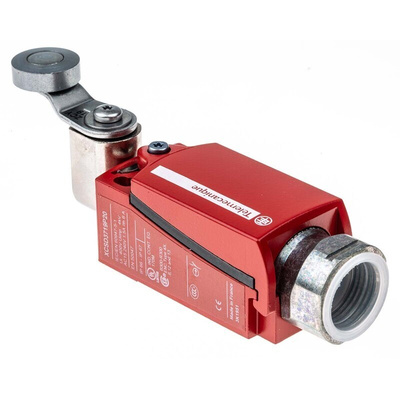

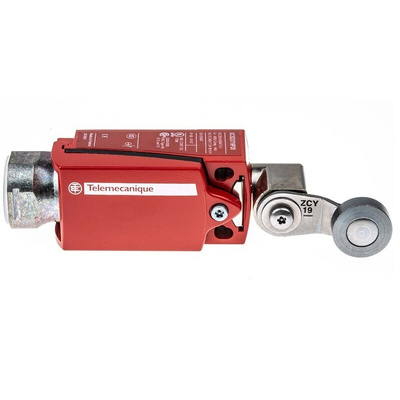

Telemecanique Sensors Safety Limit Switch
The Telemecanique Sensors XCSD series safety limit switch has a rotary lever actuator and 3 contacts. This switch has 1NO/2NC contact with screw connection.
Note:
With the appropriate monitoring system and correctly wired these switches can reach safety category 4 conforming to EN/ISO 13849-1, PL e conforming to EN/ISO 13849-1, SIL 3 conforming to EN/IEC 61508.
Features and Benefits
Slow break, break before make contacts
Red metal housing
Plastic protective cover, secured by 5-lobe socket head safety screw
Head on the rotary movement switch (lever) is adjustable in 15° steps throughout 360°
Linear movement switch (plunger) has an on-end approach only
Minimum mechanical life of 10000000 cycles
Cable composition is 1 entry tapped M20 x 1.5
Certifications
IP66 rated
IP67 rated
EN/ISO13849-1
EN1088/ISO14119
EN/IEC60204-1
EN/IEC60947-5-1
UL508
approved
CSAC22.2 No 14 certified
CE certified
Safety Limit Switch XCSD3719P20Machine Guarding and Safety Range OverviewProduct Environmental Profile| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
