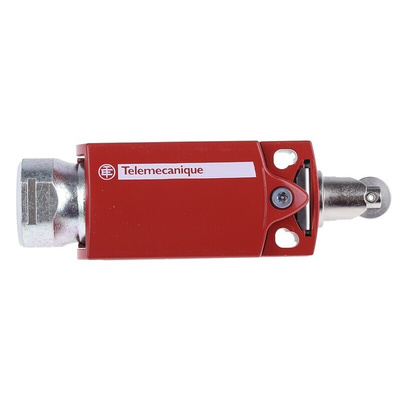

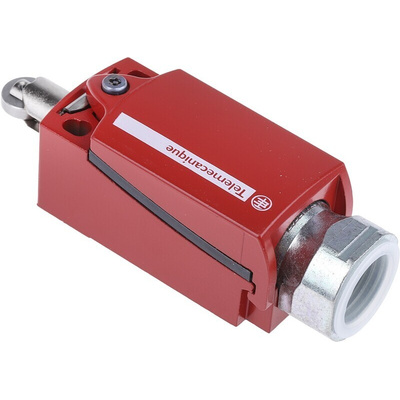

XCSD3902P20, Telemecanique Sensors XCSD Series Roller Plunger Interlock Switch, 2NC/1NO, 3P, Metal Housing, Концевой выключатель

Telemecanique Sensors Safety Limit Switch

The Telemecanique Sensors XCSD series safety limit switch has a roller plunger lever actuator and 3 contacts. This switch has 1NO/2NC contact with screw connection. This switch is designed for monitoring access doors and/or guards on machines with low inertia and also on machines with high inertia, when used in conjunction with an actuator operated guard switches. When used on their own they are always installed in positive mode but if combined in pairs then one switch is in positive mode and the other switch is in negative mode.
Note:
With an appropriate monitoring system and correctly wired, this switch can reach safety category 4, conforming to EN/ISO 13849-1, PL e conforming to EN/ISO 13849-1, SIL 3 conforming to EN/IEC 61508.

Features and Benefits

Snap action operation
Red metal housing
Plastic protective cover, secured by 5-lobe socket head safety screw
Head on the rotary movement switch (lever) is adjustable in 15° steps throughout 360°
Linear movement switch (plunger) has an on-end approach only

Minimum mechanical life of 10000000 cycles
Cable composition is 1 entry tapped M20 x 1.5

Certifications

IP66 rated
IP67 rated
EN/ISO13849-1
EN1088/ISO14119
EN/IEC60204-1
EN/IEC60947-5-1
UL508
approved
CSAC22.2 No 14 certified
CE certified
