134910 DS7-340SX009N0-N, Eaton Soft Starter, Soft Start, 4 kW, 460 V ac, 3 Phase, IP20, Устройство плавного пуска

Eaton Soft Starters - DS7 Series

This range of softstarters have become increasingly established as an alternative to the star-delta starter. The DS7 is a fully integral part of xStart and all existing components can be used. Designed for normal applications that feature pumping and ventilation machines, fans and small conveyors alongside severs and standard applications. The DS7 is also available with SmartWire-DT connection to simplify wiring and enhance functionality as an automation solution.

Features & Benefits

• Option to be connected directly to the PKE device
• Low operating frequency (5 s, 3x Ie, 10 Starts)
• The built-in fan removes any limitations
• Can be used with existing standard Eaton Products
• Available from 1.5kW up to 110kW
• 24V DC and 230 - 460V AC voltage options available
• Din Rail mounting or screw fixing
• Option to mount side by side without any de-rating
• Compact in design

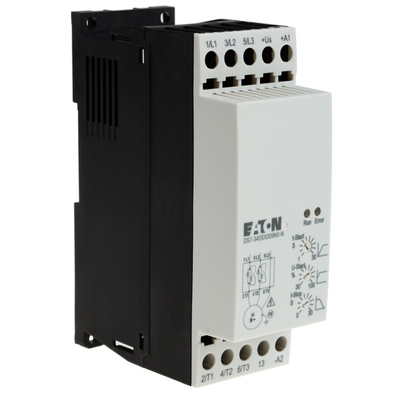

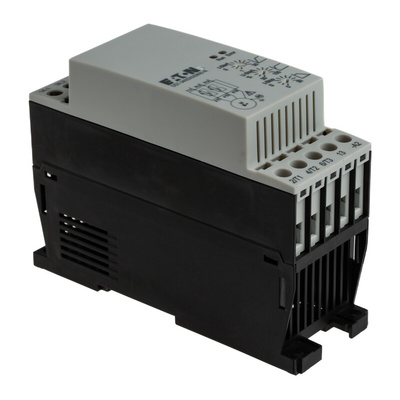

Eaton 3-Phase Soft Starter, 4kW Power Rating, 9A Current Rating - DS7 Series -134910 DS7-340SX009N0-N

Regulate the start of your electric motor using this soft starter from Eaton. It helps reduce mechanical stress that could result from sudden inrush current to the motor. Thanks to its power rating of 4kW and current capacity of 9A, you'll find the unit an energy-efficient choice for use with 3-phase motors. It's sealed to prevent your fingers or the back of your hand from touching any live parts, so you can safely handle it. For added reliability, it's resistant to shock and vibration.

• Ingress protection rating of IP20 indicates it's protected against objects larger than 12mm in size
• Light weight of 0.35kg for reduced strain on the motor
• Broad supply voltage range between 230 and 460V AC for versatility in wiring

How does this soft starter work?

It works by reducing the power supply and torque of the motor at startup to support gradual acceleration.

Can this soft starter withstand harsh environments?

Yes, it can. Thanks to its broad operating temperature range between -5°C and +40°C, you can safely use this soft starter in harsh environments.

Note

Eaton formerly known as Moeller

Soft Starter DS7-34 - Instruction Leaflet

Soft Starter DS7 - Manual

Datasheet - Eaton DS7-340SX009N0-N
