134911 DS7-340SX012N0-N, Eaton Soft Starter, Soft Start, 5.5 kW, 460 V ac, 3 Phase, IP20, Устройство плавного пуска

Eaton Soft Starters - DS7 Series

This range of softstarters have become increasingly established as an alternative to the star-delta starter. The DS7 is a fully integral part of xStart and all existing components can be used. Designed for normal applications that feature pumping and ventilation machines, fans and small conveyors alongside severs and standard applications. The DS7 is also available with SmartWire-DT connection to simplify wiring and enhance functionality as an automation solution.

Features & Benefits

• Option to be connected directly to the PKE device
• Low operating frequency (5 s, 3x Ie, 10 Starts)
• The built-in fan removes any limitations
• Can be used with existing standard Eaton Products
• Available from 1.5kW up to 110kW
• 24V DC and 230 - 460V AC voltage options available
• Din Rail mounting or screw fixing
• Option to mount side by side without any de-rating
• Compact in design

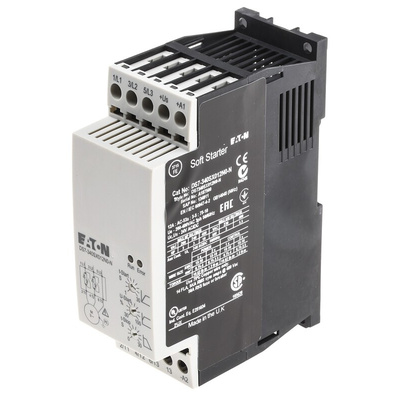

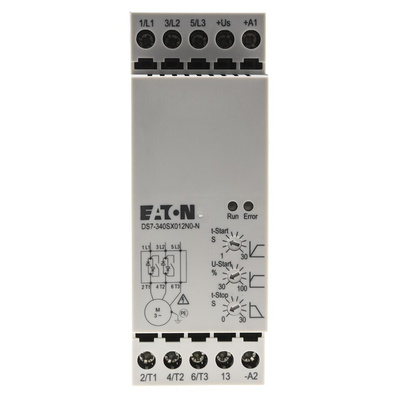

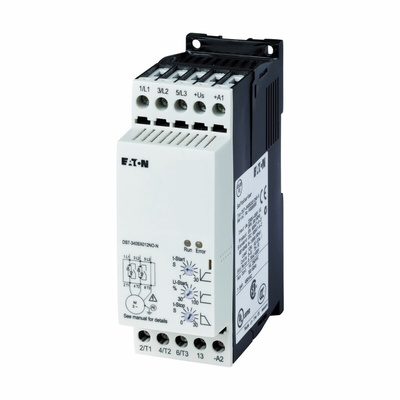

Eaton 3-Phase Soft Starter, 5.5kW Power Rating, 12A Current Rating - DS7 Series -134911 DS7-340SX012N0-N

Use this soft starter from Eaton to limit the supply voltage of your electric motor so it gradually ramps up. Thanks to its current rating of 12A, you can use this device to control 3-phase motors in industrial applications like heating, ventilation and air-conditioning systems. The unit weighs just 0.35kg so it won't add strain to your motor. It's safe to handle without the risk of electric shock as it's sealed against contact with fingers and the back of your hand.

• Wide operating temperature range between -5°C and +40°C for safe use in challenging environments
• Resistant to shock and vibration to withstand demanding conditions
• Ingress protection rating of IP20 indicates it can withstand contact from objects over 12mm in size
• Low heat dissipation of 0.6W for minimal energy consumption

How do I mount this soft starter?

You can mount this soft starter using a DIN rail or by screw fixing it making it a versatile choice. Thanks to its compact dimensions of 45mm (L) x 130mm (D) x 95mm (W), it fits easily on a small motor.

Note

Eaton formerly known as Moeller
