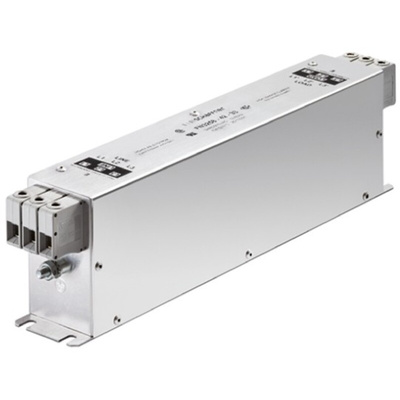

FN3258-75-34, Schaffner, FN3258 75A 480/277 V ac 60Hz, Chassis Mount EMC Filter, Terminal Block 3 Phase, Фильтр

FN 3258 Series

From Schaffner the FN3258 series allows trouble-free installation even where the available mounting space is at a minimum. Chokes with exceptional saturation resistance and excellent thermal behaviour are a vital part of the FN3258's design. All filters retain the expected filter performance even in very noisy applications and under full-load conditions.

Can be used in a wide range of applications such as 3-phase variable speed motor drives, servo drives, inverters, converters, HVAC equipment, elevators and power supplies.

Solid safety connector blocks available for the whole range
Exceptional attenuation performance from 150 kHz → 30 MHz
Excellent saturation resistance up to 50m cable length
Most compact and slim filter design in its class
Lightweight construction

Standards

EN 133200, IEC 60939

Approvals

CSA certified for Canada and US; SEMKO

Approvals

CSA; IEC60939

Datasheet

PCN Notification - Insulation Tube Colour
