P01120963, Chauvin Arnoux F603 Clamp Meter, 3000A dc, Max Current 3000A ac CAT III 1000 V, CAT IV 1000 V With RS Calibration

F603 AC/DC TRMS Clampmeter

The F603 clampmeter is designed for the high-power LV market in sectors such as elctrical power distribution, chemical and petrochemical industries, metallurgy, transport
The main applications are maintenance, testing, monitoring, diagnostics, sizing connection
Equipped with a fast 12-bit TRMS digital acquisition system
The large backlit triple display makes it easy to read in all circumstances
Automatic AC/DC detection
Resistance and audible continuity
TrueInrush current measurement
Min and Max analysis
Relative and differential measurements
Temperature
Adapter function
IP54 protection

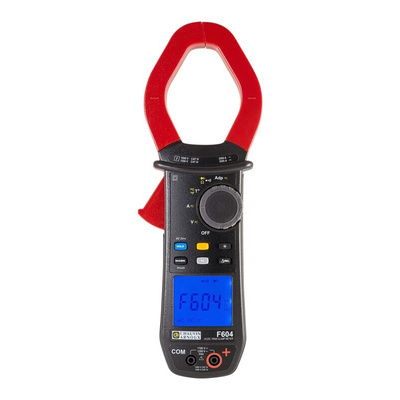

Clamp multimeter F604

With protection against electric shocks up to 12 kV, the F600 Series fulfils the most demanding safety criteria (CAT IV 1,000 V/CAT III 1,500V) and offers a high protection rating allowing users to work in total safety on all LV installations.
The F600 Series is ideal for high-power applications such as electrical power distribution, chemical and petrochemical industries, metallurgy, rail transport, etc.

Equipped with a fast 12-bit TRMS digital acquisition system, F604 clamps offer particularly accurate measurements whatever the signal's waveform.

Specifications:

• Clamping diameter: 60 mm
• Current: 2,000 A AC / 3,000 A DC
• Voltage up to 1,200 AAC et 1,700 ADC
• Resistance and audible continuity
• Temperature
• Automatic AC/DC detection
• TrueInrush current measurement
• Hold, Min, MAX
• RELative (ΔX) and differential (ΔX/X) measurements
• Adapter function
• CAT IV 1,000 V / CAT III 1,500 V
• IP54 protection rating
