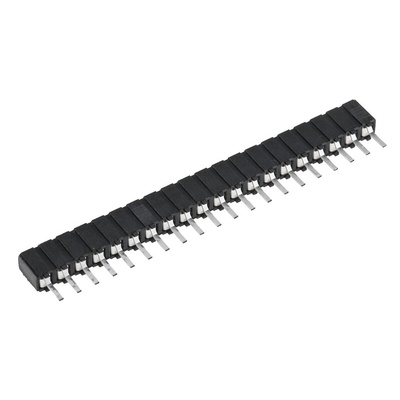

CES-120-01-T-S, Samtec CES Series Straight Through Hole Mount PCB Socket, 20-Contact, 1-Row, 2.54mm Pitch, Through Hole Termination

Samtec PCB Socket, Glass-Filled Polyester Housing Material, 333V AC Voltage Rating - CES Series - CES-120-01-T-S

This PCB socket from Samtec is a smart, space-saving connection solution for your circuit boards. It holds 20 contacts in a compact package with dimensions of 5.08 (L) x 50.8 (W) x 3.05mm (D), giving you enhanced connectivity while taking up little room. The unit plugs directly into headers on your appliance, eliminating the need for cables and leaving you with a clutter-free setup. Its glass-filled polyester housing does double duty, providing insulation to guard you from electric shock and ensuring protection against impact for use in harsh environments.

Features & Benefits

• Low contact resistance of 10mΩ for seamless signal transmission
• Pitch of 2.54mm provides safe spacing between pins to prevent short circuits
• Current rating of 1A makes it suitable for use in light-duty applications
• Through-hole mounting offers a firm, vibration-proof link to your circuit board
• Fit for use in demanding conditions, as it has a wide operating temperature range between -55°C and +105°C

Applications

• HVAC systems
• Process and packaging equipment
• Oil and gas plants

Is this PCB socket flame-resistant?

Yes, this unit stops burning in 10 seconds or less in the event of a fire, helping to prevent the spread of flames.
