CLE-105-01-G-DV, Samtec CLE Series Straight Surface Mount PCB Socket, 10-Contact, 2-Row, 0.8mm Pitch, Solder Termination

CLE Series sockets (SMT)

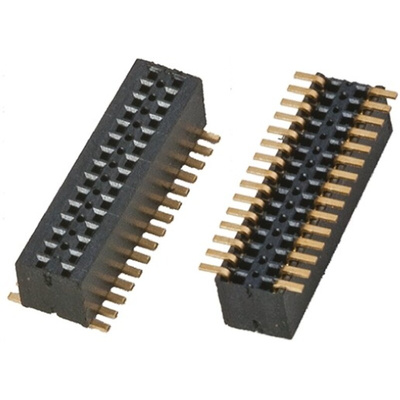

These CLE Series Board to Board SMT micro Sockets from Samtec are 0.8 mm pitch with a 1.2 mm pitch between the rows. The Tiger Beam Contacts and Tails of the CLE Series Board to Board SMT micro Sockets are 0.25 μm Gold plated. The CLE Series Board-to-Board SMT micro Socket connectors can be traversed by male headers allowing a connection to be made between three parallel boards. With an above board height of 3.3 mm this range of CLE Series Board-to-Board SMT micro Sockets provide a cost effective solution for many applications.

Insulator material, Black Liquid Crystal Polymer
Operating temperature range, -55 → 125 °C

0.8mm Board to Board - Samtec
