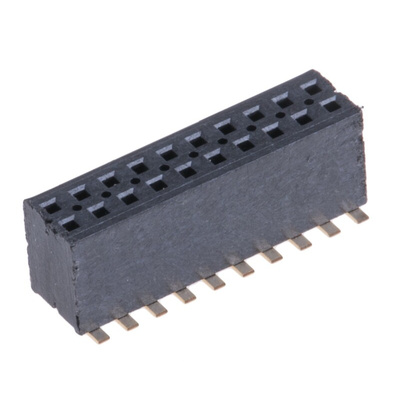

FLE-110-01-G-DV, Samtec FLE Series Straight Surface Mount PCB Socket, 20-Contact, 2-Row, 1.27mm Pitch, SMT Termination

Surface Mount Reliable Socket Strip - FLE Series

The Board-to-Board FLE Series from samtec are a 1.27 mm pitch, dual row, SMT socket strip with a body height of 4.55 mm. This Board to Board range of FLE Series 1.27 mm pitch, SMT sockets have 0.25 μm Gold plated contacts and 0.075 μm Gold plated tails.

Current rating 1.75 A
Operating temperature -55 to 125°C

Note

FLE Series SMT Socket Strips mate with:
FTSH Series micro headers, see stock number 767-6774 typical.
FTS Series micro low profile terminal strips, see stock number 481-4702 typical.

FLE Series Socket Strip Customer Drawing

FLE Series SMT Foot Print Drawing

FLE Series Socket Strip Catalogue Page
