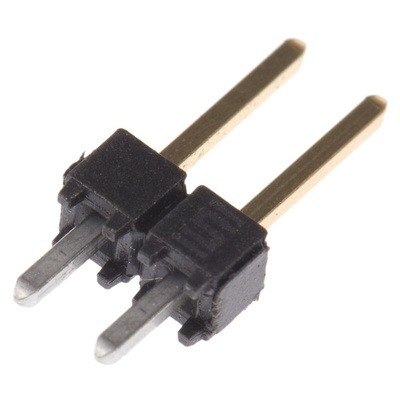

TSW-102-07-L-S, Samtec TSW Series Straight Through Hole Pin Header, 2 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded

Samtec Pin Header, 550V Voltage Rating, 2.54mm Pitch - TSW Series - TSW-102-07-L-S

For a connection you can count on, turn to this pin header from Samtec. The unit consists of two straight-angled pins in a single row, making it a good choice for vertically stacking PCBs inside your cabinet. You can rely on a steady flow of data, thanks to its highly conductive phosphor bronze contacts. Gold plating on the contact post and tin plating on the tail help to ensure resistance to corrosion for long-lasting use. A voltage rating of 550V means it holds its own in heavy-duty electrical systems.

Features & Benefits

• Glass-filled polyester insulation is resistant to heat and wear for durability in harsh environments
• Through-hole mounting makes installation a breeze
• Suitable for use in demanding conditions, as it has a broad operating temperature range between -55°C and +125°C

Applications

• Automated assembly lines
• Food and beverage production
• Robotics manufacturing

What size are the header pins?

The tail pin length is 2.54mm and the mating pin length is 5.84mm, making this a compact unit that fits onto crowded boards without a hitch.
