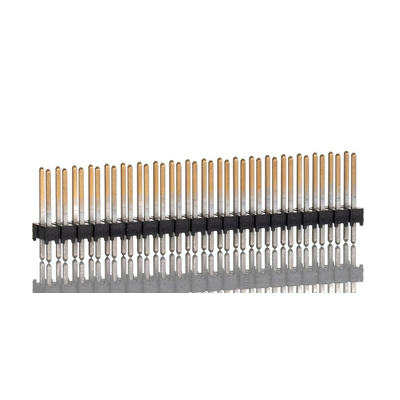

TSW-120-14-L-D, Samtec TSW Series Straight Through Hole Pin Header, 40 Contact(s), 2.54mm Pitch, 2 Row(s), Unshrouded

Samtec Pin Header, 450 to 550V AC Voltage Rating, Phosphor Bronze Contacts - TSW Series - TSW-120-14-L-D

Get connected with this 40-contact pin header from Samtec. The contacts are arranged in two rows with an industry-standard 2.54mm pitch to help you quickly and easily link multiple components with your PCB. They're made from phosphor bronze with gold plating to provide excellent conductivity and dependable signal transmission. The glass-filled polymer housing provides effective insulation to safeguard against electrical faults. Thanks to its wide operating temperature range of -55°C to 125°C, this pin header is suitable for use in harsh conditions.

Features & Benefits

• Solder termination method enables quick, reliable connections
• Through-hole mounting creates a solid link to the board
• Voltage rating of 450 to 550V AC makes it compatible with high-voltage equipment
• Straight body orientation minimises mechanical stress on your connections
• Unshrouded for accessibility and to take up less board space

Applications

• Manufacturing facilities
• Automotive production
• Broadcasting equipment
• Smart home devices

Is this pin header lead-free solderable?

Yes. You can connect this pin header with lead-free solder, helping to minimise the impact of your equipment on the environment and human health.
