2CSR273001R1404 DS203 M AC-C40/0,03, ABB RCBO, 40A Current Rating, 3P Poles, 30mA Trip Sensitivity, System Pro M Compact Range, Автоматический выключатель

ABB RCBO, 30mA Tripping Sensitivity, 3 Pole - DS203 Series - 2CSR273001R1404 DS203 M AC-C40/0,03

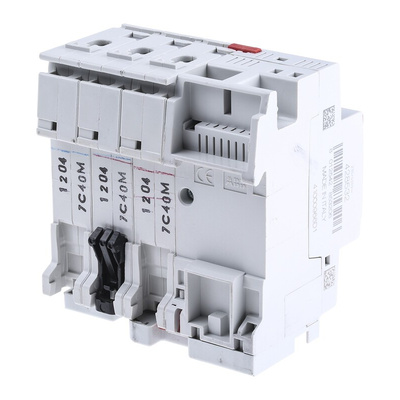

Increase your electrical safety with this 3-pole RCBO from ABB. It reduces the risk of earth leakages to help prevent electric shocks of more than 30mA. As the unit also combines overload and short circuit protection, it instantly trips the power to decrease equipment damage. Compact dimensions of 87 (W) x 93 (H) x 69mm (D) save space on your distribution board – simply clip the device onto a DIN rail for fast, tool-free installation. A robust plastic housing safeguards the internal components against impact.

Features & Benefits

• Toggle switch for easy resetting and identification of contact position
• Light weight item of 610g adds minimal strain to your setup

Applications

• Construction industry
• Automated industrial equipment
• Electrical networks
• Food and beverage processing facilities

What tripping curve does this RCBO have?

It has a Type-C tripping curve, meaning it will trip at 5 to 10 times its 40A rated current.

What does RCBO stand for?

It stands for a residual current circuit breaker with overload protection. Essentially, the unit combines a residual current device and a miniature circuit breaker in one package.

ABB RCBO's & RCCB's

RCBO's : DIN rail mounting with an operating temperature range of -25 to +55 °C. Optimum frequency range of 50 to 60Hz

RCBO DS203 M AC-C40/0,03 Data Sheet

Catalogue - Residual Current Devices
