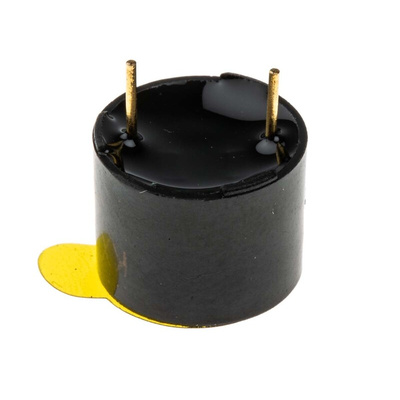

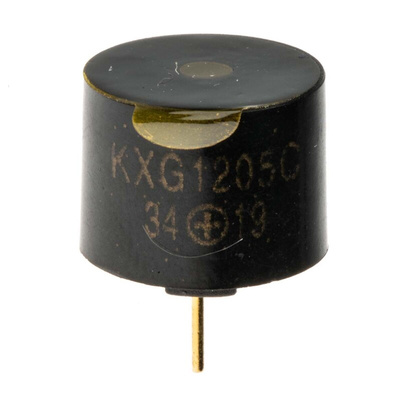

RS PRO 94dB Through Hole Continuous Internal Magnetic Buzzer Component, 12 x 9.5mm, 3V dc Min, 7V dc Max, Зуммер

RS PRO 7 V DC, PCB Mount Electromagnetic Buzzer, 94 dB Continuous

Use this magnetic buzzer component to set up a sound tone on your electrical devices or circuits with ease. It produces a continuous tone, with a high sound output of 94 dB.

This piezo buzzer can operate on a DC current, thanks to its internal circuitry and frequency range of 2000 Hz to 2.6 kHz. Moreover, it benefits from being both washable and impact-resistant thanks to its circular housing, made of black noryl material. Finally, it can be mounted directly onto a printed circuit board, as well as being wave-solderable for mass-production applications.

As part of our trusted RS PRO range, this component has been stringently tested for quality and safety. It's suitable for use at temperatures ranging from -30°C to +70°C, as well as complying with electrostatic control standards. You're likely to find it used in alarms or warning systems, and in communications equipment and electronic cash registers.

Features and Benefits

• Continuous tone piezo buzzer
• Sound level of 94 dB
• Internal drive
• Black noryl housing for washability and impact resistance
• Diameter of 12 mm
• Height of 9.5 mm
• Supply current of 30 mA
• Minimum supply voltage of 3 V (DC)
• Maximum supply voltage of 7 V (DC)
• Minimum operating temperature of -30°C
• Maximum operating temperature of +70°C
• Frequency range of 2.0 kHz to 2.6 kHz
• Through-hole mounting

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
