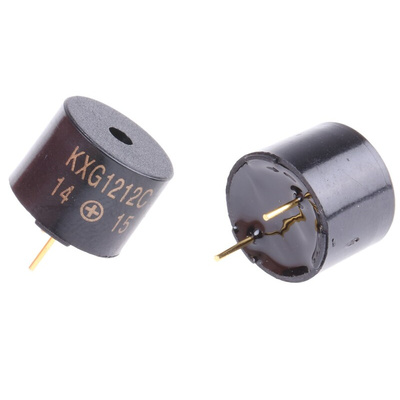

RS PRO 94dB Through Hole Continuous Internal Magnetic Buzzer Component, 12 x 9.5mm, 8V dc Min, 12V dc Max, Зуммер

7675370
Производитель: RS PRO
Цена за шт. (норма упаковки 5 шт)
678.60 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

RS PRO 16 V DC, PCB Mount Magnetic Buzzer, 94 dB Continuous

This piezo buzzer boasts a high sound output of 94 dB and produces a continuous tone. It lets you easily set up a sound tone on your electrical devices or circuits.

The buzzer's circular housing is made of black noryl material, making it both washable and impact-resistant. With a frequency range of 2000 Hz to 2.6 kHz and internal circuitry, it can operate on a DC current. You can mount the buzzer directly on a printed circuit board, and it's wave-solderable for mass-production applications.

This buzzer meets our strict quality and safety criteria, as part of the trusted RS PRO range. It can be used at temperatures ranging from -30°C to +70°C and complies with electrostatic control standards. You'll find it used in alarms or warning systems, as well as communications equipment and electronic cash registers.

Features and Benefits

• Magnetic piezo buzzer
• Sound level of 94 dB
• Through-hole mounting
• Internal drive
• Black noryl housing for washability and impact resistance
• Diameter of 12 mm
• Height of 9.5 mm
• Supply current of 35 mA
• Frequency range of 2 kHz to 2.6 kHz
• Minimum supply voltage of 8 V (DC)
• Maximum supply voltage of 16 V (DC)
• Minimum operating temperature of -30°C
• Maximum operating temperature of +70°C
• Frequency range of 2.0 kHz to 2.6 kHz

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Техническая спецификация
pdfRS PRO Datasheet
Высота:
9.5мм
Диаметр:
12мм
Максимальная частота:
2.6кГц
Максимальное напряжение питания:
12В пост. тока
Минимальная частота:
2000Гц
Минимальное напряжение питания:
8В пост. тока
Рабочая температура - максимальная:
+70°C
Рабочая температура - минимальная:
-30°C
Размеры:
12 x 9.5мм
Тип монтажа:
Сквозное отверстие
Тип привода:
Внутренний
Тип сигнала:
Continuous
Ток питания:
35мА
Уровень звучания:
94дБ
