RS PRO T-Matic Connector Connecting Component, Strut Profile 30 mm, Groove Size 6mm

RS PRO Fixing & Connection Element T-Connector, Groove Size 6 mm

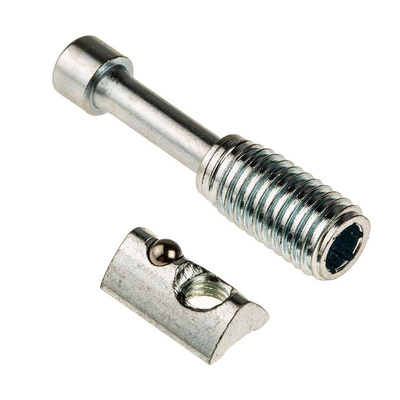

Simplify the job of joining two elements together with one of these screw connectors from RS PRO. The T-Matic connectors allow for stable right-angled connections between two aluminium struts without the use of machine tools.

T-Matic connectors are made from zinc-plated steel, which makes them extremely durable as well as corrosion-resistant. The zinc plating finish keeps the connectors protected from most oils and acids.

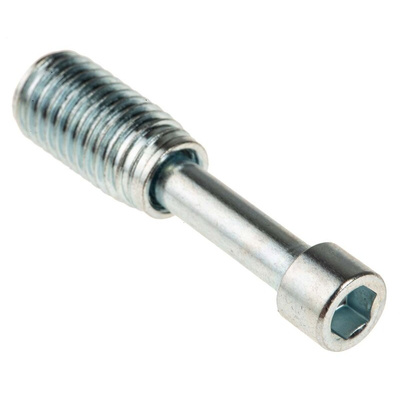

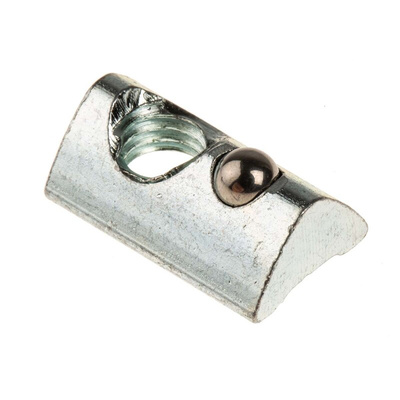

Installation couldn't be easier: the connectors have a self-tapping thread that slots simply into the strut groove. You can use the corresponding T-slot nuts to secure the connection.

These connectors fit a 6 mm groove and 30 mm strut profile. They have an M6 thread size. Screw connectors are well-suited for commercial applications such as showcases, workstation frames and stands.

As a quality RS PRO product, the connection element has been tested by our engineers for reliability and safety. It's also RoHS compliant for hazardous substances.

Features and Benefits

• Fixing & connection element
• T-Matic connector
• Made from zinc-plated steel
• Fits an 6 mm groove and a 30 mm strut profile
• M6 thread size
• RS Structural System product family (product system 30)
• RoHS compliant for restricted hazardous substances
• Conforms to Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007
