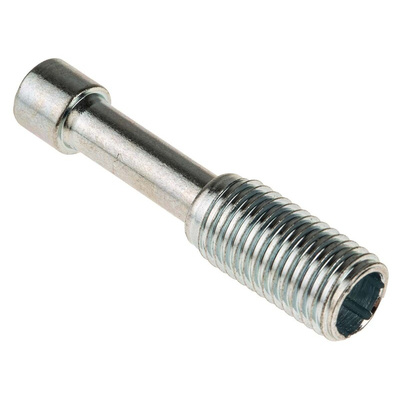

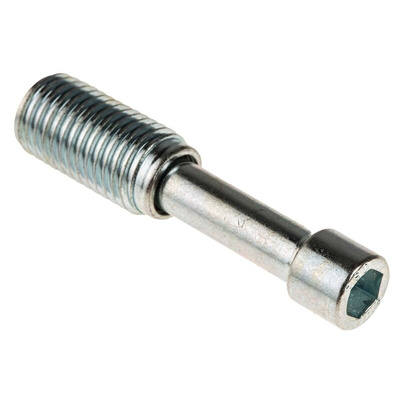

RS PRO T-Matic Connector Connecting Component, Strut Profile 40 mm, Groove Size 8mm

RS PRO Fixing & Connection Element Screw Connector, Groove Size 8 mm

Joining two elements has never been so simple thanks to these screw connectors from our RS PRO series. They are T-Matic connectors that create a stable connection at right angles between two aluminium struts with no machining involved.

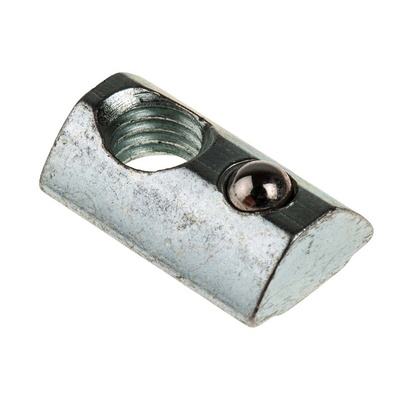

Formed from zinc-plated steel, this product is both hard and durable. Zinc-plating is also corrosion-resistant for a finish that will protect them from most oils and acids. Qualities like these ensure their continued function for years to come. Installation is incredibly easy, too. A self-tapping thread without burring allows them to be comfortably slotted into a strut groove. T-slot nuts are also supplied to create a fast and solid connection.

No hazardous substance is present in excess of 0.1%, complying with EU regulations and RoHS guidance. Fitting an 8 mm groove and a 40 mm strut profile, these connectors are well-suited for use with workstation frames, showcases, and stands.

Features and Benefits

• T-Matic connectors made from zinc-plated steel
• Fits an 8 mm groove and 40 mm strut profile
• M8 thread
• RS Structural System product family
• Supplied with T-slot nuts
• RoHS compliant
• Steel
• Conforms to the ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet

RS PRO Structural Systems Guide
