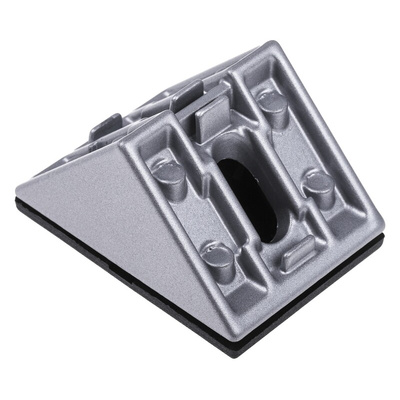

RS PRO Angle Bracket Connecting Component, Strut Profile 40 x 40 x 40 mm, Groove Size 8mm

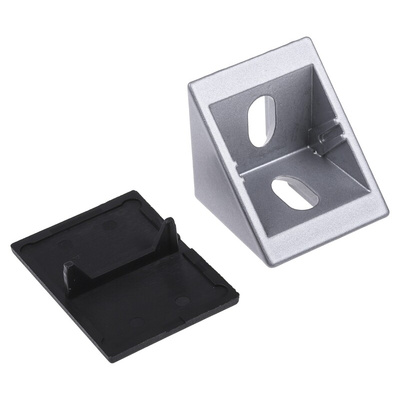

RS PRO Angle Bracket Connector with Cap Set

RS PRO offers this great connector bracket and joint angle to fit 40 x 40 x 40 mm strut profiles with a groove size of 8 mm. These connecting sets provide the angle bracket to secure structural profiles along with a decorative cap. The angle bracket components are compatible with a range of profiles.

Application

The brackets have a centre lug to enable rapid and precise assembly with protection against turning. Guide tabs ensure proper alignment in the profiles T-slot. The tabs can easily be removed if a cross connection of profiles.

Features and Benefits

Allows for a sturdy connection without profile end finishing
Can be easily removed and reused
Die-Cast Zinc construction for hard wearing uses

Compatible Strut Profiles

RS PRO Aluminium Strut - 40x40 mm, 8 mm Groove, 1000 mm Length - 7613319
RS PRO Aluminium Strut - 40x40 mm, 8 mm Groove, 2000 mm Length - 7613313
RS PRO Aluminium Strut - 40x40 mm, 8 mm Groove, 3000 mm Length - 7613322

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

Standards

EN61340

RS Structural System Profile Accessories

RS Structural System Profile Accessories include Cube Connectors, T-slot Nuts, Ball Catches, Turn Locks, Self Tapping Screws, Earthing Terminals, Cover Caps, and many other items. RS Structural System Profile Accessories are entirely compatible with Item Profile 6 and Profile 8 structural system components. RS Profile accessories are suitable for general workplace furniture system construction, offering light-weight, strong, easily interchangeable elements for a variety of profile types. The RS Structural System Profile Accessories form part of a modular system of components that may be constructed to form a wide variety of furniture structures, such as guarding enclosures, work benches, general enclosures, and other workplace fixtures.

Dimensional Drawing

RS PRO Datasheet

RS PRO Structural Systems Guide
