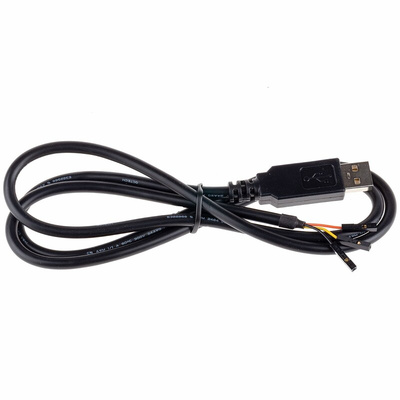

TTL-232R-RPI, FTDI Chip 1m USB to UART Cable in Black

Raspberry Pi USB to TTL Level Serial UART Converter Cable, FTDI Chip

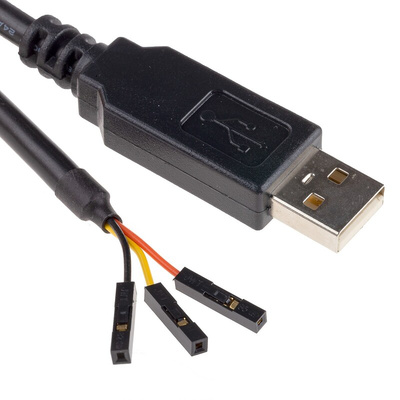

The TTL-232R-Rpi from FTDI is a USB to TTL level serial UART converter cable designed for use with a Raspberry Pi. Upon inspection, there is a USB connector with USB 2.0 full speed compatibility and 3 single pole 0.1m pitch header that connects to a serial port on the Raspberry Pi board. The cable is configured electrically to process and drive +3.3 V logic level UART signals.

What is the purpose of the cable?

This cable provides a simple method to analyse and debug your Raspberry Pi programming. The cable is connected to the Raspberry Pi ARM processor UART receive/transmit and provides detailed information from the Linux kernel to your PC.

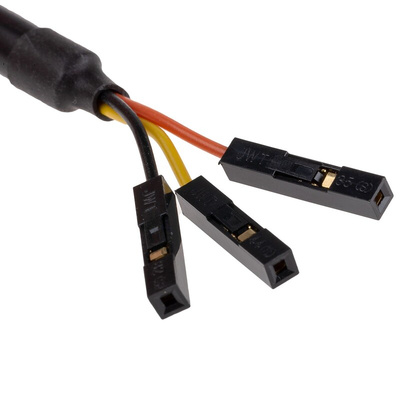

Cable Signal Description

• GND; black - Device ground supply pin. Connects to the RPI ground pin
• TXD; orange - Transmit Asynchronous Data output. Connects to RXD input on RPi board
• RXD; Yellow - Receive Asynchronous Data input. Connects to TXD output on RPi board

TTL-232R-Rpi Key Features

• Internal EEPROM
• Lower Operating and Suspend Current
• Low USB Bandwidth Consumption
• High Output Drive Option
• UART Pin Signal Inversion
• FCC and CE compliant
• 3.3 V TTL inputs
• FCC and CE compliant

Communication Parameters

• Speed: 115200 baud
• Bits: 8
• Parity: None
• Stop Bits: 1
• Flow Control: None

Application Information

FTDI TTL-232R-RPi cable provides USB to TTL Level UART solutions and is customised for operation specific to the Raspberry Pi.
