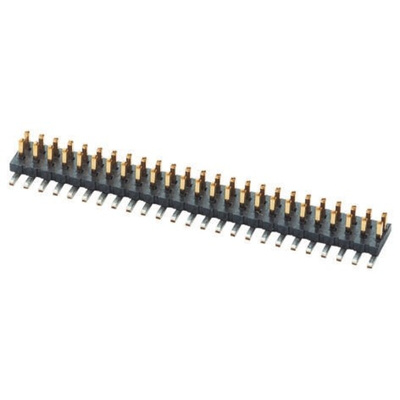

FTS-130-03-L-DV, Samtec FTS Series Straight Surface Mount Pin Header, 60 Contact(s), 1.27mm Pitch, 2 Row(s), Unshrouded

Surface Mount Micro Low Profile Terminal Strips - FTS Series

The FTS Series from samtec are a 1.27 mm pitch SMT micro low profile terminal strip with a body height of 1.27 mm. This range of FTS Series micro low profile terminal strips can be mated with appropriate socket strips or IDC cable assemblies.

0.25μm gold plated contacts, tin plated tails
Current rating 1.75 A
Operating temperature -55 to 125°C

FTS-xxx-01-x-xx have 3.05 mm long posts and mate with FFSD Series IDC cable assemblies, see stock number 159-880 typical
FTS-xxx-02-x-xx have 1.91 mm long posts and mate with FLE Series sockets, see stock number 766-8959 typical
FTS-xxx-03-x-xx have 1.65 mm long posts and mate with CLP Series sockets, see stock number 481-4695 typical

1,27mm * 1,27mm Micro Strips - FTS Series

1,27mm * 1,27mm Micro Strips - FTS Series FootPrint

FTS Series Micro Strip Terminals Customer Drawing
