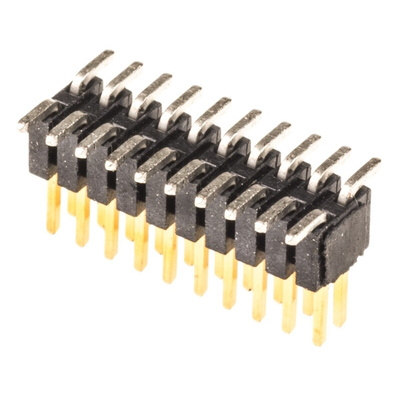

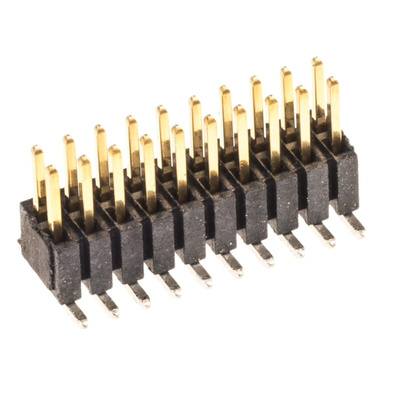

FTSH-110-01-L-DV, Samtec FTSH Series Straight Surface Mount Pin Header, 20 Contact(s), 1.27mm Pitch, 2 Row(s), Unshrouded

Surface Mount Micro Headers - FTSH Series

FTSH series SMT micro headers with a 1.27 mm pitch and gold plated contacts. This range of FTSH Series 1.27 mm pitch SMT micro terminal strips can be mated with appropriate socket strips or IDC cable assemblies.

Current rating 1.75 A at 80 °C
Operating temperature -55 to 125 °C

Note

FTSH Series SMT Terminal Strips mate with:
FFSD Series IDC cable assemblies, see stock number 159-880 typical.
CLP Series micro socket strips, see stock number 481-4695 typical.
FLE Series socket strips, see stock number 766-8959 typical.

Samtec Pin Header, 20 Contacts, Black Liquid Crystal Polymer Insulation Material - FTSH Series - FTSH-110-01-L-DV

Route power and communications between PCBs in a flash with this pin header from Samtec. The wire-to-board connector has 20 contacts that let you make multiple connections using just one terminal block. Thanks to its compact pitch of 1.27mm, the unit is a practical choice for setups with limited space, such as those found in automotive and telecommunication systems. As this header strip is a Samtec SET-qualified product, you can count on its durability and reliability, even in the harshest of operating environments.

Features & Benefits

• Withstands up to 250 mating cycles for an extended service life
• Gold-plated contacts are corrosion-resistant to ensure optimal conductivity
• Black liquid crystal polymer insulation provides protection against electric shock for added safety
• Resists electrostatic discharge to minimise electrical interference

Applications

• Data and communication centres
• Aerospace engineering
• Industrial automation
• Military industry

Can I install this pin header using an automatic pick-and-place machine?

Yes, thanks to its surface mount technology and solder pads, you can pack this terminal directly onto the reels of automated pick-and-place machines.
