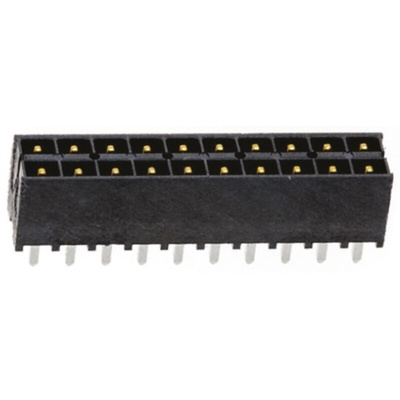

IPT1-110-01-L-D, Samtec IPT1 Series Straight Through Hole PCB Header, 20 Contact(s), 2.54mm Pitch, 2 Row(s), Shrouded

Shrouded 2.54mm PCB Isolated Power Terminals - IPT1 Series

IPT1 series Mini Mate® board to board shrouded PCB isolated power header terminals with a 2.54mm pitch and a height of 11.05mm when mated. These IPT1 series board to board PCB isolated power headers have a double row of Rugged™ individually shrouded 0.25μm gold plated phosphor bronze contacts set inside a black glass LCP insulator. The temperature range at which these IPT1 series board-to-board through hole power header terminals can be used is -55 to +125°C with a maximum power rating of 9A at an ambient temperature of 20°C.
Part numbers IPT1-1XX-01-L-D are straight through hole mount
Part numbers IPT1-1XX-01-L-D-RA are right angle through hole mount

Note

These board to board shrouded PCB power header terminals mate with the IPS1 series shrouded PCB power sockets - see stock number 767-6840 typically.

Samtec 2.54mm Power Terminals and Sockets

Shrouded Power Terminal, IPT1 Series - Customer Drawing

Shrouded Power Connectors IPT1 and IPS1 Series
