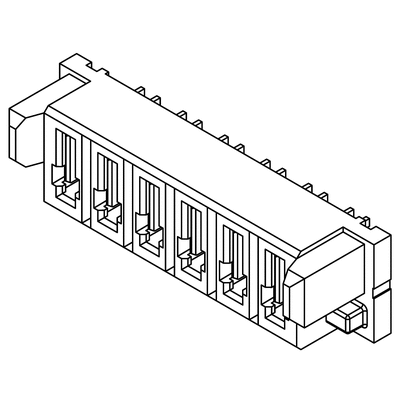

MPS-04-7.70-01-L-V, Samtec MPS Series Straight Through Hole Mount PCB Socket, 4-Contact, 1-Row, 5mm Pitch, Solder Termination

MPS Series 25A Dual Leaf Socket

This Board to Board range of MPS Series 25 A, Dual Leaf, Socket Strips from Samtec have 0.25 μm Gold plating on the contact area and Matte Tin plating on the PCB Tails. The stack height of the Board-to-Board range of MPS Series 25 A, Dual Leaf, Socket Strips is 14 mm when mated with the corresponding MPT Series Header, see stock number 767-6976 typical. These Board to Board MPS Series, 25 A, Dual Leaf, Socket Strips are used with a 1.6 mm thick PCB. The design of the Right Angle (RA) versions of these Board-to-Board MPS Series 25 A Dual Leaf Socket Strips have Ø3.56 mm Screw Down holes.

Insulator Material: Black LCP
Temperature Range: -55 → 125 °C

Samtec PCB Power Connectors

MPS Series Mini-Power Socket Vertical Footprint Drawing

MPS Series Mini-Power Socket Vertical Customer Drawing

MPS Series Mini-Power Vertical Socket Catalogue Page
