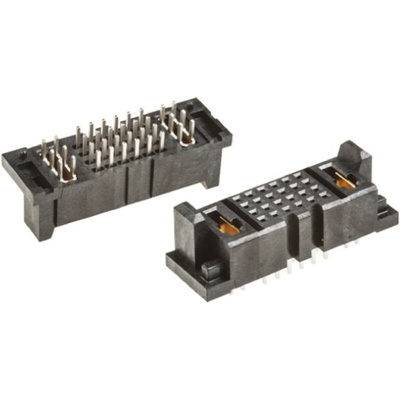

MPSC-01-24-01-7.70-01-L-V, Samtec MPSC Series Straight Through Hole Mount PCB Socket, 26-Contact, 4-Row, 2mm Pitch, Solder Termination

2 mm 25 A Signal Power System - MPSC Series

These MPSC Series of 2 mm pitch, 25 A, Signal, Power, Combo System hybrid Socket Backplane strips have 0.25 μm Gold plating on the contact area and Matte Tin plating on the PCB tails. This range of MPSC Series of 2 mm pitch, 25 A, Signal, Power, Combo System hybrid Socket Backplane strip are available in a Vertical configuration.

Insulator Material: Black LCP
Operating temperature range: -55 → 105 °C

MPSC-xx-xx-01-7.70-01-L-V: suitable for 1.57 mm thick PCBs
MPSC-xx-xx-02-7.70-01-L-V: suitable for 2.36 mm thick PCBs

Note

For mating MPTC Series Sockets see stock number 767-7001 typical.

Samtec - Hybrid Combo Systems

MPTC Series 25A Signal Power Combo System Catalogue Page

MPSC Series 25A Signal Power Combo System Customer Drawing

MPSC Series 25A Signal Power Combo System Footprint Drawing
