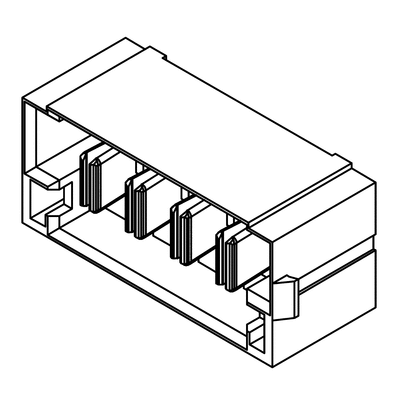

MPT-02-6.30-01-L-V, Samtec MPT Series Straight Through Hole PCB Header, 2 Contact(s), 5.0mm Pitch, 1 Row(s), Shrouded

MPT Series 25A Dual Blade Header

This Board to Board range of MPT Series 25 A, Dual Blade, Headers from Samtec have 0.25 μm Gold plating on the contact area and Matte Tin plating on the PCB Tails. The stack height of the Board-to-Board MPT Series 25 A, Dual Blade, Headers is 14 mm when mated with the corresponding MPS Series Socket, see stock number 767-6932 typical. These Board to Board MPT Series 25 A, Dual Blade, Through Hole Headers are used with a 1.6 mm thick PCB. The design of the Right Angle (RA) versions of these Board-to-Board MPT Series 25 A, Dual Blade, Headers have Ø3.56 mm Screw Down holes.

Insulator Material: Black LCP
Temperature Range: -55 → 125 °C

MPT-xx-6.30-01-L-V: Height 6.3 mm, Vertical
MPT-xx-01-01-L-RA-SD: Right Angle with Screw Down holes

Samtec PCB Power Connectors

MPT Series 25A Dual Blade Header Customer Drawing

MPT Series 25A Dual Blade Header Catalogue Page

MPT Series 25A Dual Blade Header Footprint Drawing
