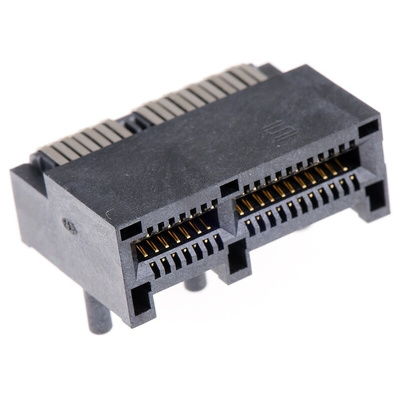

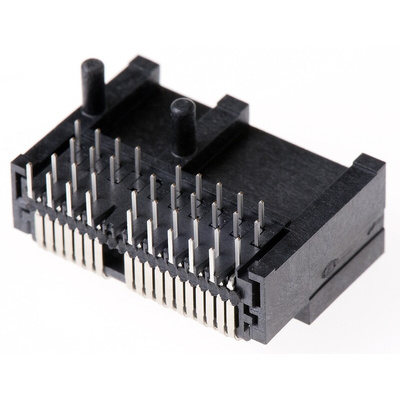

PCIE-036-02-F-D-RA, Samtec PCIE Series Right Angle Female Edge Connector, Through Hole Mount, 36-Contacts, 1mm Pitch, 2-Row, Solder, Разъем

Samtec Edge Connector, For PCIe 3.0 Cards, 215V AC Voltage Rating - PCIE Series - PCIE-036-02-F-D-RA

Plug extra hardware into your PCB system with this Samtec edge connector. By adding a port for a 1.6mm graphics or networking card, it quickly upgrades a board's connectivity for easy setup expansion. The device's gold-plated bronze contacts are corrosion-resistant and highly conductive to keep electricity flowing freely. Slipping the component into a low-profile space is no problem, thanks to its right-angled mounting pins. As the connector takes cards using plug-in mating, it removes the trouble of special tools so you can link peripherals up in no time.

Features & Benefits

• Uses the PCIe 3.0 standard for wide peripheral compatibility
• Housing alignment pins line up with PCB for a hassle-free set-up
• Supports through-hole mounting for secure installation
• Nylon body provides effective insulation for protection against electrical hazards
• Handles temperatures between -55°C and +125°C to perform reliably in harsh environments

Applications

• Beverage production
• Home computer building
• Industrial robotics

How do I know if I've correctly inserted my card into this connector?

This product comes with polarising keys that stop your card from fully entering the port if it's improperly inserted, cutting the risk of damage from misalignment.
