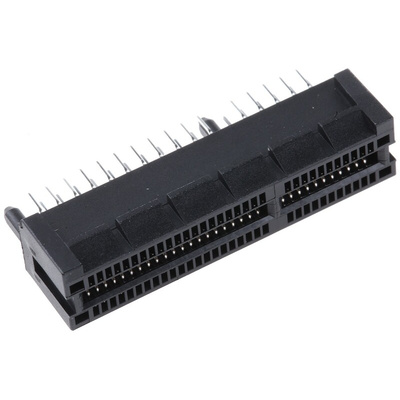

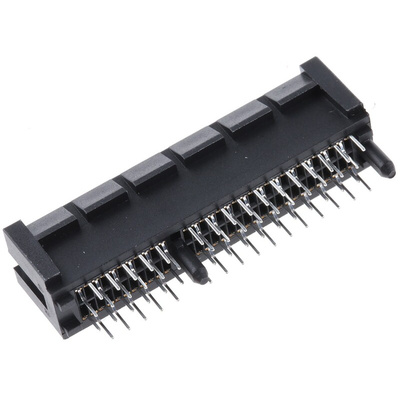

PCIE-064-02-F-D-TH, Samtec PCIE Series Female Edge Connector, Through Hole Mount, 64-Contacts, 1mm Pitch, 2-Row, Solder Termination, Разъем

Samtec Edge Connector, 8mm Card Insertion Depth, 1.6mm Card Size - PCIE Series - PCIE-064-02-F-D-TH

Expand and enhance the capabilities of your computer with this edge connector from Samtec. It accepts 1.6mm cards, allowing you to boost your graphics, audio and Ethernet hardware connections. It's compatible with one, four, eight and 16 PCI Express links for versatility. A card insertion depth of 8mm ensures a secure fit to prevent accidental disconnection. The unit is sealed in a black nylon housing for resistance to wear and abrasion. Simply solder it in place on your equipment to ensure a long-lasting installation.

Features & Benefits

• Operates reliably at temperatures ranging from -55°C to +125°C for use in extreme conditions
• Lead-free solderable material provides a safe and environmentally friendly connection option
• Phosphor bronze contacts are highly conductive for a reliable connection
• Gold-over-nickel plating on contacts for resistance to corrosion
• Integrated alignment pins to streamline installation

Applications

• Wi-Fi card upgrades
• Storage control installations
• Home computer builds

How large is the connector?

This unit has compact dimensions of 39 (L) x 7.5 (W) x 11mm (D), allowing it to fit into tight spaces inside a computer system.
