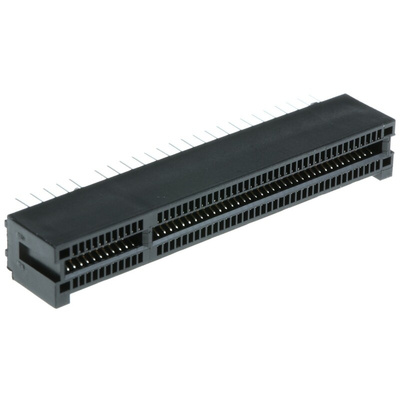

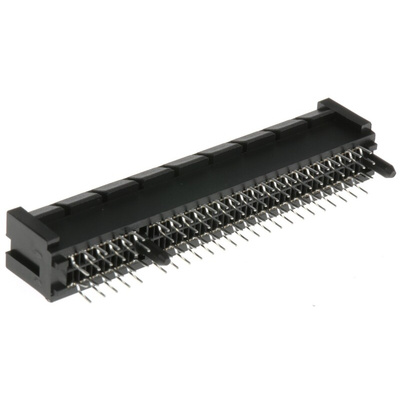

PCIE-098-02-F-D-TH, Samtec PCIE Series Female Edge Connector, Through Hole Mount, 98-Contacts, 1mm Pitch, 2-Row, Solder Termination, Разъем

Samtec Edge Connector, 2.5A Current Rating, 7.5mm Width - PCIE Series - PCIE-098-02-F-D-TH

Broaden the scope of your PCB with this edge connector from Samtec. It mates with the rim of your circuit board, creating a connection point for expansion cards. The two-row module supports eight PCI Express links, so you can simplify your assembly. Thanks to a pitch of 1mm and compact overall dimensions of just 56 (L) x 7.5 (W) x 11mm (D), this component is a sure fit for crowded setups. This module's gold-over-nickel-plated phosphor bronze contacts are highly conductive and resistant to corrosion for speedy signal transmission.

Features & Benefits

• Nylon housing provides effective insulation to prevent electric shock
• Performs reliably in harsh environments, thanks to a wide operating temperature range between -55°C and +125°C
• Polarised to prevent incorrect mating and damage

Applications

• Computers
• Industrial control panels
• Robotics
• Gaming consoles
• Telecommunications installations

How do I install this edge connector?

Its through-hole mounting style means installation is a walk in the park. Just punch the pins through the selected holes on your PCB and solder them in place to securely attach the unit. It also has alignment pins that help you position the component accurately.
