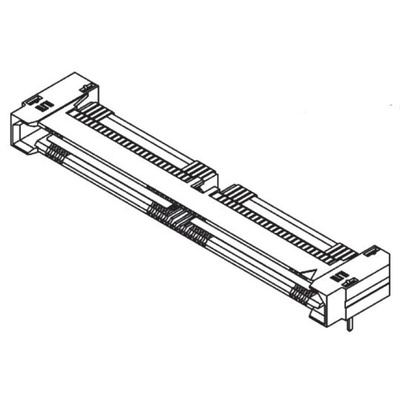

QRF8-026-01-L-RA-GP, Samtec QRF8 Series Right Angle Surface Mount PCB Socket, 52-Contact, 2-Row, 0.8mm Pitch, Solder Termination

QRF8 Series Slim Body Ground Plane Sockets

These Board to Board QRF8 Series connectors have 0.25 μm Gold plated contacts with Tin plated Tails. This range of Board to Board QRF8 Series connectors are available: with and without Guide Posts, straight or right angle, 5 or 7 mm body heights. The design of these Board to Board QRF8 Series connector includes samtec's Edge Rate contacts.

QRF8-xxx-05.0-x-x-x-xx have a Body height of 5 mm
QRF8-xxx-07.0-x-x-x-xx have a Body height of 7 mm
QRF8-xxx-xx.x-x-x-x-GP have Guide Posts
QRF8-xxx-xx-x-RA-GP have a horizontal orientation with Guide Posts

Note

Mates with QRM8 Series Headers see stock number 767-7115 typical.
Guide Post versions require Guide Post mating articles.

0.8mm Board to Board - Samtec

QRF8-RA Series Ground Plane Socket Catalogue Page

QRF8-RA Series Ground Plane Socket Footprint Drawing

QRF8-RA Series Ground Plane Socket Customer Drawing
