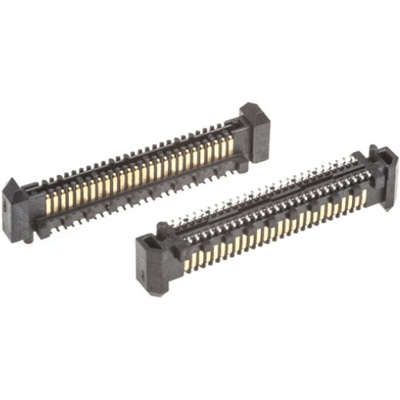

QRM8-078-07.0-L-D-A-GP, Samtec Q Rate QRM8 Series Straight Surface Mount PCB Header, 156 Contact(s), 0.8mm Pitch, 2 Row(s), Shrouded

QRM8 Series Slim Body Ground Plane Headers

These Board to Board QRM8 Series connectors have 0.25 μm Gold plated contacts with Tin plated Tails. This range of Board to Board QRM8 Series connectors are available: with and without Guide Posts, straight or right angle, 2, 5 or 7 mm body heights. Alignment Pins are included in this rangeThe design of the Board to Board QRM8 Series connector includes samtec's Edge Rate contacts.

QRM8-xxx-02.0-x-x-x-xx have a Body height of 2 mm
QRM8-xxx-07.0-x-x-x-xx have a Body height of 7 mm
QRM8-xxx-xx.x-x-x-x-GP have Guide Posts
QMR8-xxx-xx-x-RA-GP have a horizontal orientation with Guide Posts

Note

Mates with QRF8 Series Sockets see stock number 767-7082 typical.
Guide Post versions require Guide Post mating articles.

0.8mm Board to Board - Samtec

QRM8 Series Slim Body Ground Plane Header Catalogue Page

QRM8 Series Slim Body Ground Plane Header Customer Drawing

QRM8 Series Slim Body Ground Plane Header Footprint Drawing
