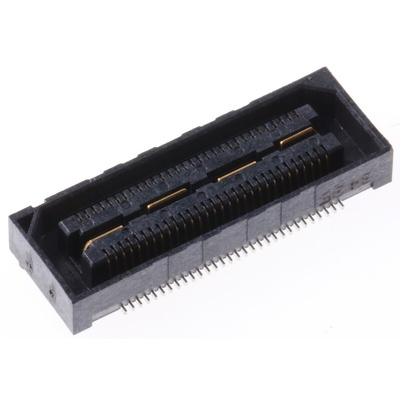

QSH-030-01-L-D-A, Samtec QSH Series Straight Surface Mount PCB Socket, 60-Contact, 2-Row, 0.5mm Pitch, Solder Termination

Samtec PCB Socket, 12A Current Rating, 0.5mm Pitch - QSH Series - QSH-030-01-L-D-A

Keen to make cable-free board-to-board connections? Choose this PCB socket from Samtec. Just plug or unplug a compatible pin header (767-8745) to link or uncouple two circuit boards in no time. Once mated, the module's stack height is only 5mm, so it takes up minimal space. Its highly conductive and corrosion-resistant phosphor bronze contacts ensure speedy signal transmission across your setup to boost efficiency. A wide operating temperature range between -55°C and +125°C means the unit doesn't break a sweat in demanding conditions.

Features & Benefits

• Voltage rating of 175V AC when mated with a compatible component for use in low-voltage applications
• Solder termination enables secure, vibration-proof mounting
• 60 contacts allow you to make multiple connections

Applications

• Automotive manufacturing
• Consumer electronics
• Medical devices
• Automation control instruments
• Commercial and domestic appliances

Does this PCB socket come with any electrical protections?

Yes, it features an integrated metal plate for grounding to help prevent electric shocks.

How do I position this PCB socket on my board?

The unit has alignment pins that help with positioning and soldering.
