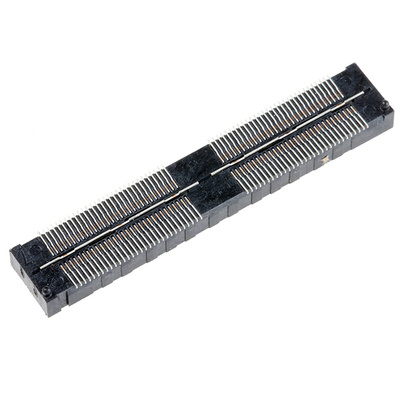

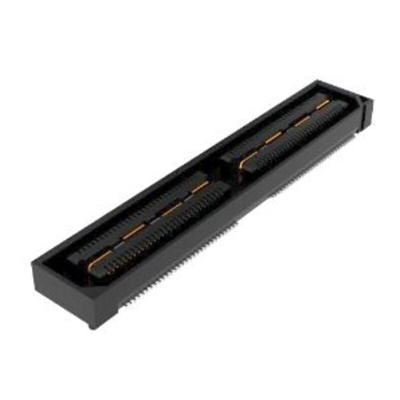

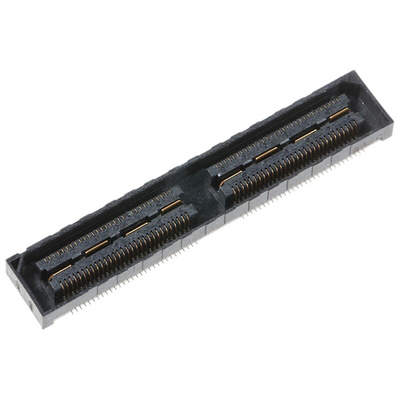

QSH-060-01-L-D-A, Samtec QSH Series Straight Surface Mount PCB Socket, 120-Contact, 2-Row, 0.5mm Pitch, Solder Termination

Samtec PCB Socket, 125V AC Voltage Rating, 25A Ground Plane Current Rating - QSH Series - QSH-060-01-L-D-A

Need to link different PCBs? Create reliable connections with this double-row PCB socket from Samtec. It pairs seamlessly with their 120-contact PCB header (180-5008) to form a simple, plug-in coupling that's easy to connect and disconnect. The highly conductive, gold-plated bronze contacts zoom signals from board to board at lightning-fast speeds of 18Gbps. With a stack height of just 5mm when mated, this module maximises available PCB space. It handles harsh conditions with ease, thanks to its wide operating temperature range between -55°C and +125°C.

Features & Benefits

• Integrated metal plate for power or ground connections
• Blade-and-beam design ensures precise coupling with the header
• 125V AC rating, making it suitable for low-voltage electronic circuits
• Solder termination method for fuss-free and reliable connections

Applications

• Military systems
• Aerospace industry
• Consumer electronics
• Medical devices

Why is it important to have a ground plane on a PCB?

A ground plane ensures top-notch performance, as it maintains signal clarity and eliminates the risk of electrical noise.

How many contacts does this PCB socket have?

It has 120 contacts, which means the unit accommodates 120 interlinked circuits.

0.5mm Pitch -Samtec

Datasheet
